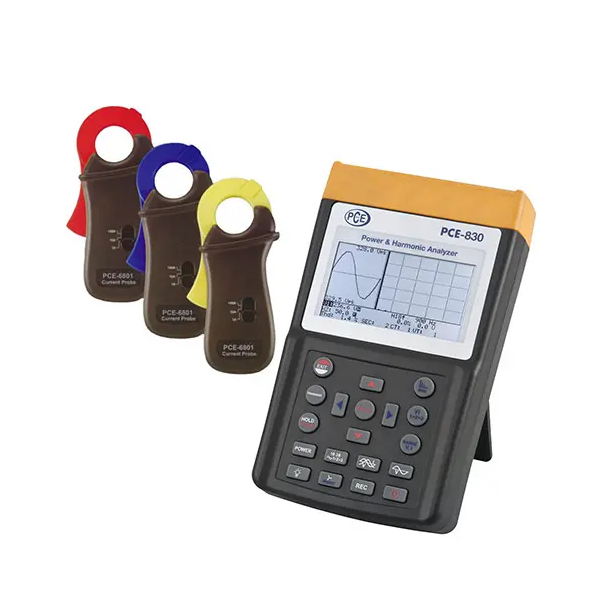

PCE Instruments PCE-830-1 Three-Phase Power Meter, Data Logger
- Part #:PCE-830-1
- Condition:Brand New
- List Price: $3,155.00
- $2,871.10 / KitYou Save: 9.0%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Description
- Accessories
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Measurement values | Measurement ranges / resolution / accuracy |
| PCE-830 + PCE-6801 Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1) | 5.0 W to 999.9 W / 0.1 W / ±1% ±0.8 W 1.000 kW to 9.999 kW / 0.001 k W / ±1% ±8 W 10.00 kW to 99.99 kW / 0.01 kW / ±1% ±80 W 100.0 kW to 999.9 kW / 0.1 kW / ±1% ±0.8 kW 1000 kW to 9999 kW / 1 kW / ±1% ±8 kW |
| PCE-830 + PCE-6801 Current AC (50 Hz or 60 Hz, auto range select, TRMS) | 0.04 A to 1 A / 0.001 A / ±0.5% ±0.05 A 0.4 A to 10.0 A / 0.01 A / ±0.5% ±0.05 A 4 A to 100.0 A / 0.1 A / ±1.0% ±0.5 A |
| Voltage AC (50 Hz or 60 Hz, TRMS) | 20.0 V to 500.0 V / 0.1 V / ±0.5% ±5 digits (measure between phase and neutral) 20.0 V to 600.0 V / 0.1 V / ±0.5% ±5 digits (measure between phase and neutral) |
| Harmonic distortion of AC voltage | 1º to 20º / 0.1% / ±1.0% 21º to 49º / 0.1% / 4% of reading ±2.0% 50º to 99º / 0.1% / 6% of reading ±2.0% |
| PCE-830 + PCE-6801 Harmonics of AC current in % | 1º to 20º / 0.1% / ±0.2% of reading ±1.0% 11º to 20º / 0.1% / ±2% of reading ±1.0% 21º to 50º (A)/ 0.1% / ±5% of reading ±1.0% 21º to 50º (mA)/ 0.1% / ±10% of reading ±1.0% 51º to 99º / 0.1% / ±35% of reading ±1.0% |
| PCE-830 + PCE-6801 Power Factor (PF) | 0.00 to 1.00 / 0.01 / ±0.04 |
| PCE-830 + PCE-6801 Phase angle (Phi) | -180° to 180° / 0.1° / ±1° |
| PCE-830 + PCE-6801 Total harmonic distortion | 0.0 to 20.0% / 0.1% / ±1% 20.0% to 100% / 0.1% / ±3% of reading ±5% 100% to 999.9% / 0.1% / ±10% of reading ±10% |
| Maximum measurement of AC voltage and current | 50 Hz / 19 µS / ±5% ±30 digits 60 Hz / 16 µS / ±5% ±30 digits |
| Peak value measurementof AC voltage and current | 1.00 to 99.99 / 0.01 / ±5% ±30 digits |
| Frequency range in automatic mode | 45 Hz to 65 Hz / 0.1 Hz / 0.1 Hz |
| Memory | 512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors |
| Port | USB |
| Software and cable | Included, for Windows 2000, XP, ME |
| Display | Backlit LCD with dot matrix |
| Power | 8 AA batteries (Mignon) |
| Dimensions | 257 mm x 155 mm x 57 mm 10.1 in x 6.1 in x 2.2 in |
| Weight | 1.16 kg / 2.56 lbs |
| Operating conditions | Max. 85% relative humidity / -10 ... 50ºC / 14 ... 122°F |
| Type of protection / standards | IEC 61010, 600 V/CAT III |
