PCE Instruments PCE-360 Three-Phase Power Clamp Meter, 600.0 V True RMS value

Overview

The PCE Instruments PCE-360 Three-Phase Power Clamp Meter is a versatile and powerful tool for comprehensive power analysis. This clamp meter functions as a single-phase and three-phase power analyzer with integrated data logging capabilities. It's designed to provide real-time and long-term measurements of various electrical parameters, making it invaluable for energy audits, troubleshooting, and system optimization. The PCE-360 comes equipped with essential accessories, including clamps, clips, leads, PC software, and a data cable, offering a complete solution for professional power measurement and analysis.

Key Features

• Real-Time and Long-Term Measurement: Performs both instantaneous and continuous power measurements, allowing for both immediate analysis and long-term trend monitoring (up to 578 days at a 5-second sample rate).
• Comprehensive Power Analysis: Measures a wide range of electrical parameters, including voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, rotary field, and various forms of energy.
• Harmonics and Waveform Analysis: Enables detailed analysis of harmonics (up to the 63rd order, via software) and waveforms (via software) to identify power quality issues.
• Large, Clear Display: The large, easy-to-read screen displays up to 10 measurements simultaneously, providing a clear overview of electrical conditions.
• Extensive Data Logging: Stores up to 99 measurements directly in manual mode and an impressive 10,000,000 sets of measurements in data logger mode to the 4 GB internal memory.
• PC Software Included: Comes with Windows-compatible software and a data cable for easy transfer, analysis, and reporting of measured values.
• Automatic Shutdown: Features a battery-saving automatic shutdown function that activates after approximately 30 minutes of inactivity.

Specifications

• Brand: PCE Instruments
• Model: PCE-360
• Type: Three-Phase Power Clamp Meter
• Parameters Measured:
  • Voltage (V)
  • Current (A)
  • Active Power (kW)
  • Apparent Power (kVA)
  • Reactive Power (kVar)
  • Power Factor (cos Φ)
  • Phase Angle (Φ)
  • Frequency (Hz)
  • Rotary Field (UL > 50V)
  • Active Energy (MWh)
  • Apparent Energy (MVAh)
  • Reactive Energy (MVArh)
  • Harmonics (1 ... 63 order, via software)
  • Waveforms (via software)
• Data Storage: 4 GB internal memory (10,000,000 sets)
• Display: Large, easy-to-read LCD

Applications

Indispensable for electrical engineers and technicians conducting power quality assessments and troubleshooting electrical systems. Essential for energy auditors performing energy audits to identify inefficiencies and reduce energy consumption. Crucial for maintenance personnel monitoring electrical loads and preventing equipment failures. Valuable for testing and verifying the performance of electrical equipment and installations. Applicable in industrial, commercial, and residential settings for comprehensive power analysis and energy management.

Performance and Characteristics

The PCE-360 Three-Phase Power Clamp Meter provides accurate and reliable measurements of a wide range of electrical parameters. Its ability to perform both real-time and long-term monitoring makes it a versatile tool for various applications. The large, clear display allows for easy reading of measurement results. The extensive data logging capabilities enable detailed analysis of power consumption trends. The included software facilitates data transfer, visualization, and reporting. The clamp meter design allows for non-intrusive current measurements, simplifying installation and minimizing downtime. The optional ISO calibration certificate provides added assurance of measurement accuracy.

Additional Information

PCE Instruments is a reputable manufacturer of professional testing and measurement equipment, known for its commitment to accuracy and reliability. The PCE-360 is designed to meet the demanding needs of professionals who require a comprehensive and versatile power analysis tool. Its ability to measure various electrical parameters, analyze harmonics, and log data over extended periods makes it a valuable asset for energy management, electrical troubleshooting, and system optimization.

Kit Contents

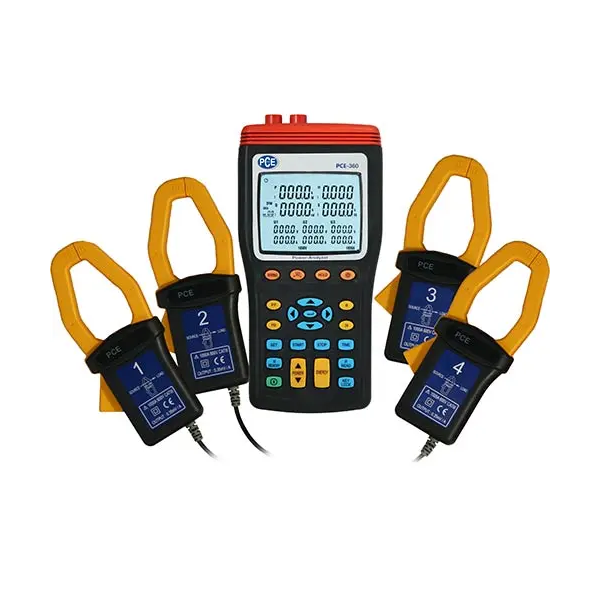

• 1 x PCE-360 Three-Phase Power Data Logger
• 4 x Current clamps
• 4 x Measuring leads
• 4 x Alligator clips
• 8 x 1.5 V AA batteries
• 1 x Power adapter
• 1 x USB cable
• 1 x PC software CD-ROM
• 1 x User manual
• 1 x Carrying case

Accurately analyze power consumption and optimize energy efficiency with the powerful and comprehensive PCE Instruments PCE-360 Three-Phase Power Clamp Meter!
