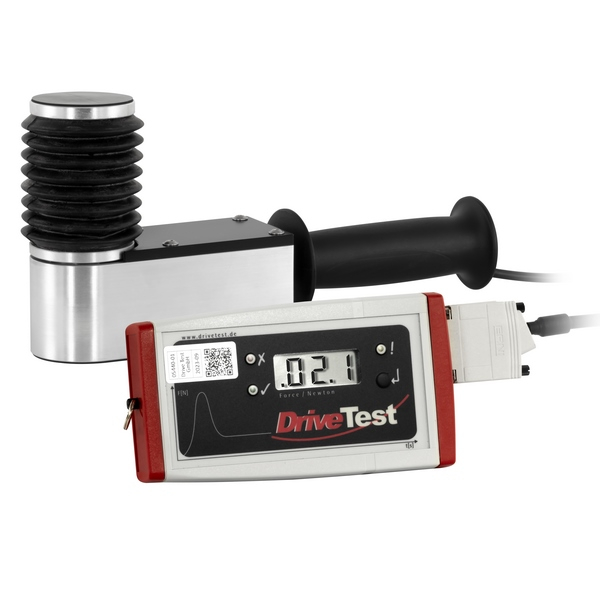

PCE Instruments FM300-SY-25-750 Closing Force Measuring Device for Elevator Doors, 25 N/mm

Closing Force Measuring Device. Closing force measurement system for elevator doors

The closing force measuring device is an electronic measuring device for elevator doors and protective devices on machines. Typical use is both the final acceptance of new systems and regular inspection. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.In the case of cyclical measurements on objects with several elevators, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements of all elevator doors in a building can be taken over, printed out in tabular form and saved in a database.

Features:

• Support of relevant standards - EN 81-1, EN 81-2, EN 81-20:2014, EN 81-50:2015, EN 14120
• Precise measurements
• Robust design
• Easy handling - operation with a single control button or remotely controlled via Microsoft® DLL - interface or National Instruments® LabView library
• Complete scope of delivery - including high-quality transport case and software
• Professional, comprehensive PC software - PinchPilot
• Extensive systems can be measured in one run - measured value acquisition module saves up to 100 measurements

Includes:

• 1 x Closing force measuring device FM300 with 2.5 m connection cable
• 1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display, Membrane button and serial interface
• 1 x 9V block battery
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x USB data stick with PC evaluation software PinchPilot and documentation
• 1 x Manual
• 1 x ISO Calibration Certificate
