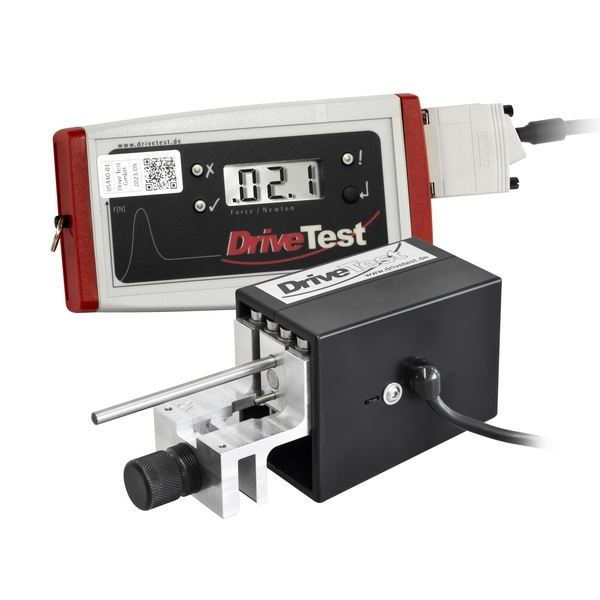

PCE Instruments FM205-WI-SY-10-150/65 Closing Force Transducer for Automatic Window Regulators, 65 N/mm

Closing Force Measuring Device. Closing force measurement for automatic window regulators

The closing force measuring device is an electronic closing force measuring device for power-operated windows in the automotive sector. Typical areas of application are testing and production in the automotive industry. For this purpose, we have developed a device that is easy to use for repetitive measurements. Due to the requirements of various common standards, we offer the device with different spring stiffnesses. It is also increasingly used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measurements even after years of use in harsh environments.For measurement set-ups in testing and production, quick and easy execution is of great importance. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.

Features:

• Support of relevant standards - US Standard FMVSS 118
• Precise measurements - due to friction-free guidance and platform load cell
• Robust design - high-strength aluminum and POM ensure a long service life in tough applications
• Ease of use - single button operation or remote control via Microsoft® DLL - Interface or National Instruments® LabVIEW library
• Professional, extensive PC software - PinchPilot leaves nothing to be desired
• Complete scope of delivery - including high-quality transport case

Includes:

• 1 x Closing force transducer FM205/65
• 1 x Sensor 65N/mm
• 1 x SEB2.2 indicator
• 1 x PinchPilot software
• 1 x ISO calibration certificate
