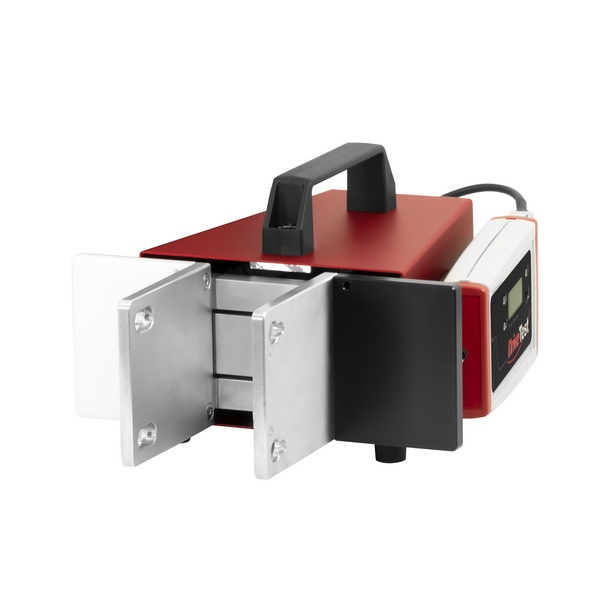

PCE Instruments BIA600-SY-10-700 Closing Force Measurement System for Rail Vehicle Doors

Closing force measuring device, safety through closing force measurementClosing force measurement system for rail vehicle doors

The closing force measuring device is an electronic measuring device for rail vehicle doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. With just a few operating steps, the measurements of a complete vehicle can be taken over, evaluated in tabular or graphic form and then printed out as a report.

Features:

• Applicable standards DIN EN 14752:2015
• Precise measurements
• Robust design
• Ease of use - One button operation or remote control via - Microsoft® DLL  Interface or National Instruments® LabView library
• Professional PC software PinchPilot
• Spacers for all opening widths according to EN 14752:2015
• Automatic limit value setting by distance detection
• Complete scope of delivery of all components in a high-quality transport case
• Support for the management of large fleets

Includes:

• 1 x Closing force measuring device BIA600 incl. connection cable
• 1 x Indicator SEB2 data logger unit with LCD display and LED status indicators, control button, serial interface
• 1 x 9V battery
• 1 x Spacer (4 pieces) according to EN 14752:2015
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x PinchPilot PC software, suitable for Windows XP, Vista, W7, W8, W10
• 1 x User Manual
• 1 x ISO calibration certificate
