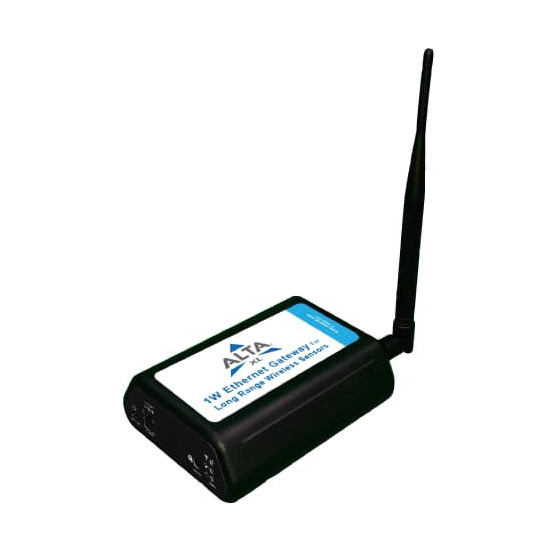

Monnit MNG3-9-EGW-CCE ALTA XL 900 MHz Ethernet Gateway

ALTA XL 900 MHz Ethernet Gateway

The ALTA XL ® Ethernet Gateway features a powerful wireless transceiver with up to 1 Watt of transmission power and an amplified receiver. The ALTA XL ® Ethernet Gateway can send and receive data communications with ALTA® Wireless Sensors 2,000+ feet through 18+ walls in commercial building environments.

The gateway allows ALTA Sensors to communicate with iMonnit ® IoT Monitoring and Notification System without needing a PC. Simply provide power and plug the gateway into an open Ethernet port with an Internet connection. It will automatically connect with online servers, providing the perfect solution for Internet-enabled commercial locations.

The ALTA XL ® Ethernet Gateway is an advanced gateway that enables fast, reliable IoT data solutions. It's specifically designed to respond to the increasing market need for global technology that accommodates various vertical IoT application segments and remote wireless sensor management solutions.

Features:

• Wireless range of 2,000+ feet through 18+ walls
• Frequency-Hopping Spread Spectrum (FHSS)
• Best-in-class interference immunity
• Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• 30,000 sensor message memory
• Over-the-air (OTA) updates (future-proof)
• True plug and play, no hassles for Internet configuration setup
• No PC required for operation
• Local-status LEDs with transmission and online status indicators
• AC power supply

Applications:

• Remote Location Monitoring
• Facility Management
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring

Includes:

• Power Supply
• RP SMA Antenna
• Ethernet Cable
• Ethernet Gateway
• Ethernet Gateway Quick Start Guide
