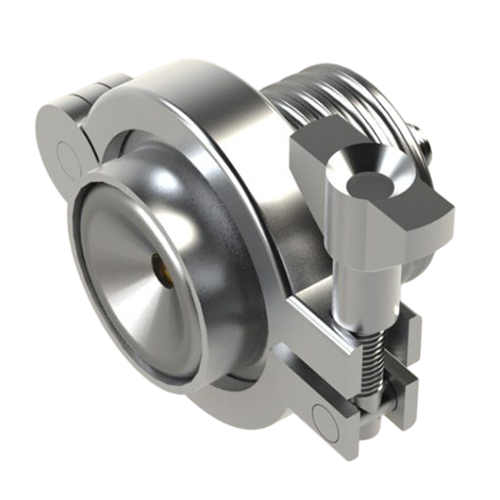

Misco VIP2-3A-2-232 Certified Sanitary Inline Refractometer with 2" Tri-Clamp, Output Digital - ASCII Text
- Part #:VIP2-3A-2-232
- Model #:VIP2-3A Sanitary Inline
- Condition:Brand New
- List Price: $8,995.00
- $8,719.20 / EachYou Save: 3.07%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $8,995.00
- $8,719.20 / EachYou Save: 3.07%
- Free Shipping
Description
Features:
- 3-A Sanitary Refractometer for Food & Product Safety: Driven by concerns over food and product safety in the dairy, food, beverage, and bio-pharmaceutical industries, 3-A certified sanitary refractometers must meet exacting hygienic standards before they are awarded certification, one of the top honors attainable in the field of refractometry.
- Needless to say, refractometers carrying the 3-A seal meet the highest level of professional standards for the protection of public health by offering the maximum degree of protection against food or product contamination, resulting in product contact surfaces that can be easily cleaned and sanitized.
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| REFRACTIVE INDEX EQUIVALENT | |
| Range | 1.3330 to 1.5000 |
| Resolution | 0.0001 |
| Precision | (+/-0.0001 nD20) |
| BRIX EQUIVALENT | |
| Range | 0 to 85 |
| Resolution | 0.1 |
| Precision | (+/- 0.1 Brix) |
| Temperature Range | -4 to 212 °F (-20 to 100 °C) |
| Temp. Control Method | Auto Temp. Correction |
| Pressure Range | 0 to 300 psi (0 to 20.68 bar) |
| Temp. Control Basis | Scale Dependent |
| OUTPUT OPTIONS | |
| Digital - ASCII Text | Included |
| Digital - USB Output | YES |
| # of Scale | Depends on Output Options |
| User Programmable | Options & Settings |
| User Calibration Points | Two |
| Error Codes | Text-Based & Lights |
| PHYSICAL CHARACTERISTICS | |
| I/O Connection Type | 2" Tri-Clamp |
| Number of Connections | N/A |
| Integrated Mounting Bracket | N/A |
| Integrated Flow-Thru Adapter | N/A |
| Water Resistance | IP68 - NEMA 6P |
| Dimensions | 2.40" Tall x 2.52" Max. Dia. (61 mm Tall x 64.1 mm) |
| Weight | 1 lbs. (0.45 kg ) |
| MATERIALS | |
| Optic/Measuring Surface | Sapphire |
| Optic Seal | Bonded |
| Sensor Head | Passivated 316L Stainless Steel |
| Sensor Body | Passivated 316L Stainless Steel |
| Integrated Mounting Bracket | N/A |
| Integrated Flow-Thru Adapter | N/A |
| Standard Fluid Seals | Viton (Others Available) |
| OPTO-ELECTRONICS | |
| Detector Elements | 1,024 |
| Light Source | Precision LED at 589.3 nm |
| Power Source | 5 to 24 VDC Depending on Output Options |
| ORIGIN-APPROVALS | |
| Approvals/Certifications | CE, FCC, 3A Sanitary |
| Country of Origin | USA |
