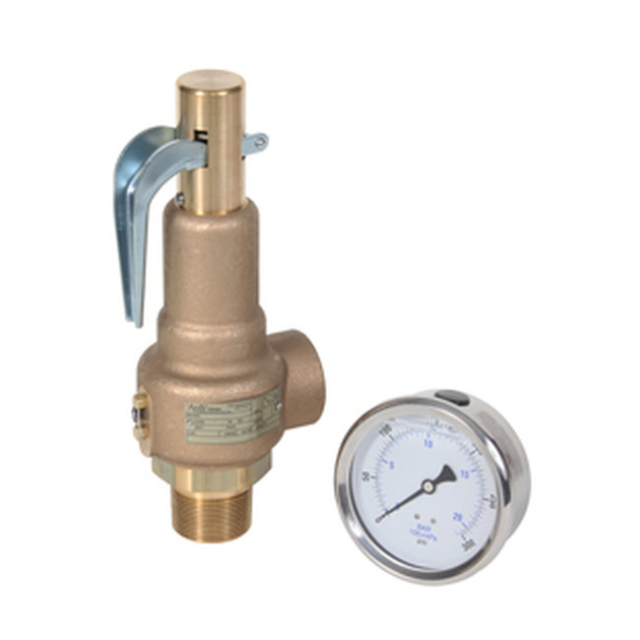

Midwest Control TKM165-R300 Tank Kit 1-1/2 x 1-1/2 Safety Valve 165 PSI 1750 SCFM 4" LF CBM Gauge 300 PSI

Tank Kit 1-1/2 x 1-1/2 Safety Valve 165 PSI 1750 SCFM 4" LF CBM Gauge 300 PSI

Features:

• Custom Built Tank Kits for Your Specific Application. This Kit Contains a Safety Valve and Gauge.

Safety Valve

• Cast Bronze Construction
• Complies with ASME VIII Air Applications
• Rugged Design Features Improved Alignment for Enhanced Performance and Reliability
• Wider Wrenching for Easier, Faster Installations
• Two Control Rings for Maximum Performance and Adjustability
• Short Tuned Blow Down Minimizes Product Loss
• Tapped Body Drain Allows Piping of Condensate Away from Equipment
• Stainless Steel Springs
• High Capacity Full Nozzle Design
• Maximum Temperature is 406 F
• Metal to Metal Seat
• Registered in All Canadian Providences Under CSA B51 CRN OG8547.5C

Liquid Filled Gauge

• Built-In Snubber Dampens the Effect of Pulsation and Vibration
• Stainless Steel Case and Bezel
• Copper Alloy Wetted Parts
• Polycarbonate Lens
• Liquid Filled
• Accuracy: 2-1-2% of Span ASME B40.1 Grade A
• Dual Scale: PSI/Bar (x 100=kPa) Standard
• Ambient Temperature: Filled: 30 F to 160 F
• Design Meets or Exceeds ASME B40.100 Pressure Gauge Standard
