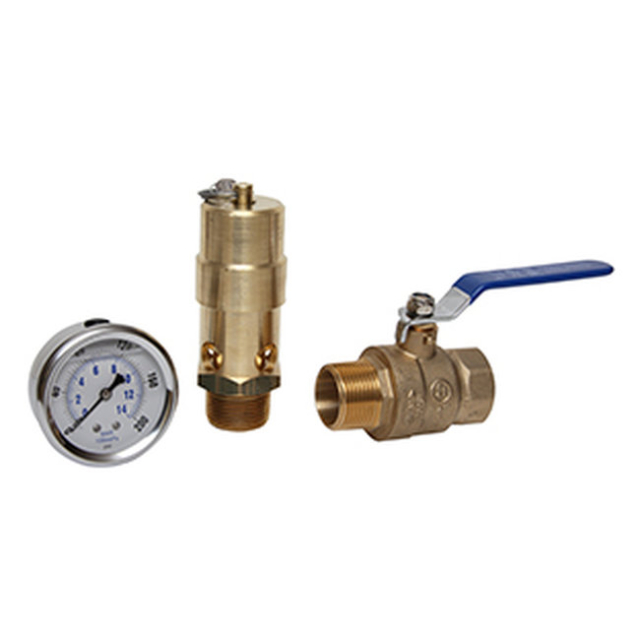

Midwest Control TKG200-Q300MG Tank Kit 1" Safety Valve 200 PSI 1624 SCFM 2.5" LF CBM Gauge 300 PSI 1" MPT x FPT Ball Valve

Tank Kit 1" Safety Valve 200 PSI 1624 SCFM 2.5" LF CBM Gauge 300 PSI 1" MPT x FPT Ball Valve

Features:

• Custom Built Tank Kits for Your Specific Application. This Kit Contains a Safety Valve, Gauge and Ball Valve.
  Safety Valve
• Set Pressure Tolerances: ± 3% of Set Pressure
• Maximum Temperature: 250 F
• Construction: All Brass With Stainless Steel Springs
• Unique Silicone O Ring Seal Ensures Valve is Bubble Tight to Within 10% of Set Pressure
• Stamped With the UV and NB Symbols

Liquid Filled Gauge
• Built-In Snubber Dampens the Effect of Pulsation and Vibration
• Stainless Steel Case and Bezel
• Copper Alloy Wetted Parts
• Polycarbonate Lens
• Liquid Filled
• Accuracy: 2-1-2% of Span ASME B40.1 Grade A
• Dual Scale: PSI/Bar (x 100=kPa) Standard
• Ambient Temperature: Filled: 30 F to 160 F
• Design Meets or Exceeds ASME B40.100 Pressure Gauge Standard


Ball Valve
• UL, CSA/CUS, CE and FM Approved
• 600 PSI CWP 150 WSP Service
• Suitable for Vacuum Service to 29.9" Hg
• Full Port
• Temperature Range: -20 F to 365 F
• Forged Brass Body
• Blow Out Proof Brass Stem
• Chrome-Plated Brass Ball
• PTFE Ball Seat and Packing Nut
• Chrome-Plated Steel Handle w/Vinyl Grip
• ISO Registered Factory
• Meets MSS SP-110 Standards
• RoHS Compliant
