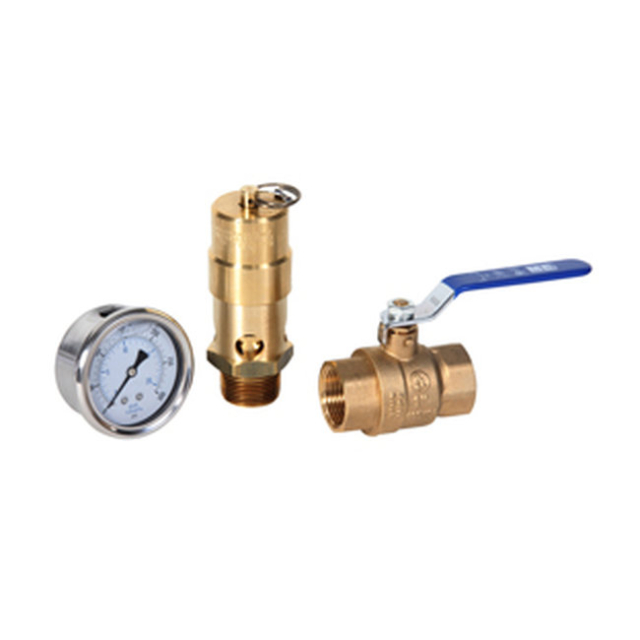

Midwest Control TKG200-Q300FG Tank Kit 1" Safety Valve 200 PSI 1624 SCFM 2.5" LF CBM Gauge 300 PSI 1" FPT Ball Valve

Tank Kit 1" Safety Valve 200 PSI 1624 SCFM 2.5" LF CBM Gauge 300 PSI 1" FPT Ball Valve

Features:

• Custom Built Tank Kits for Your Specific Application. This Kit Contains a Safety Valve, Gauge and Ball Valve.
  Safety Valve
• Set Pressure Tolerances: ± 3% of Set Pressure
• Maximum Temperature: 250 F
• Construction: All Brass With Stainless Steel Springs
• Unique Silicone O Ring Seal Ensures Valve is Bubble Tight to Within 10% of Set Pressure
• Stamped With the UV and NB Symbols

Liquid Filled Gauge
• Built-In Snubber Dampens the Effect of Pulsation and Vibration
• Stainless Steel Case and Bezel
• Copper Alloy Wetted Parts
• Polycarbonate Lens
• Liquid Filled
• Accuracy: 2-1-2% of Span ASME B40.1 Grade A
• Dual Scale: PSI/Bar (x 100=kPa) Standard
• Ambient Temperature: Filled: 30 F to 160 F
• Design Meets or Exceeds ASME B40.100 Pressure Gauge Standard


Ball Valve
• UL, CSA/CUS, CE and FM Approved
• 600 PSI CWP 150 WSP Service
• Suitable for Vacuum Service to 29.9" Hg
• Full Port
• Temperature Range: -20 F to 365 F
• Forged Brass Body
• Blow Out Proof Brass Stem
• Chrome-Plated Brass Ball
• PTFE Ball Seat and Packing Nut
• Chrome-Plated Steel Handle w/Vinyl Grip
• ISO Registered Factory
• Meets MSS SP-110 Standards
• RoHS Compliant
