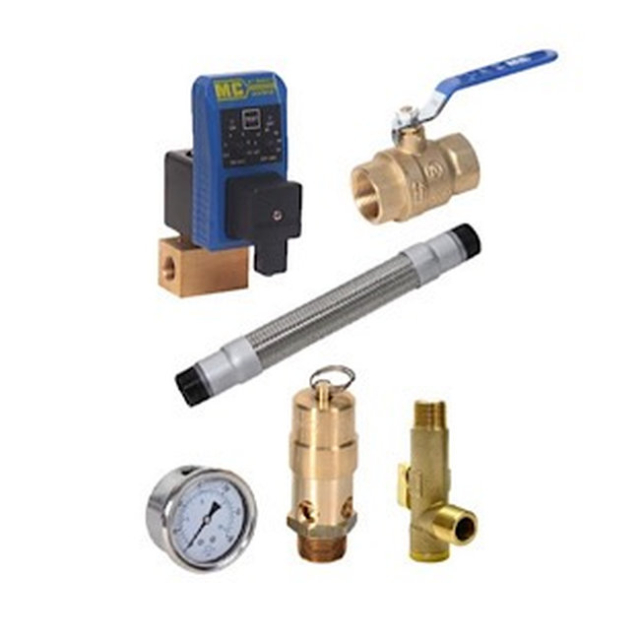

Midwest Control TKG165-Q300FG-CSCC2 Tank Kit Safety Valve Gauge Ball Valve Drain Strainer Flex Hose

Tank Kit Safety Valve Gauge Ball Valve Drain Strainer Flex Hose

Features:

• Custom Built Tank Kits for Your Specific Application.
  The Kit Contains a Safety Valve, Gauge, Ball Valve, Receiver Timer Drain, Strainer and Flex Hose.

  Safety Valve

• Set Pressure Tolerances: ± 3% of Set Pressure
• Maximum Temperature: 250 F
• Construction: All Brass With Zinc Plated Music Wire Spring
• Resilient Silicone Rubber Pad Ensures Valve is Bubble Tight to Within 10% of Set Pressure
• Stamped With the UV and NB Symbols

Liquid Filled Gauge

• Built-In Snubber Dampens the Effect of Pulsation and Vibration
• Stainless Steel Case and Bezel
• Copper Alloy Wetted Parts
• Polycarbonate Lens
• Liquid Filled
• Accuracy: 2-1-2% of Span ASME B40.1 Grade A
• Dual Scale: PSI/Bar (x 100=kPa) Standard

Ball Valve

• UL, CSA/CUS and FM Approved
• 600 PSI CWP 150 WSP Service
• Suitable for Vacuum Service to 29.9" Hg
• Full Port
• Temperature Range: -20 F to 365 F
• Forged Brass Body
• Blow Out Proof Brass Stem
• Chrome-Plated Brass Ball
• PTFE Ball Seat and Packing Nut
• Steel Handle w/Vinyl Grip

Electronic Condensate Drain Information

• UL and CE Approved
• Construction: Forge Brass Body, 4.5mm Orifice
• Solid State Timer
• Adjustable Interval Time: 0.5 to 45 Minutes
• Adjustable Discharge Time: 0.5 to 10 Seconds
• Manual Test Switch
• Operating Temperature: 34 F to 140 F
• IP 65 NEMA 4 Rated
• Yellow LED On - Off Lights
• Housing: ABS Fire Resistant
• Includes 6 Ft Power Cord
• Inlet and Outlet Connection: FNPT

Strainer

• 600 PSI CWP Service
• Temperature Range: -4 F to 200 F
• Brass Body
• 50 Mesh 304 Stainless Steel Screen
• Chrome Plated Ball
• PTFE Ball Seats
• Unique Design Allows Valve to Be Closed and Screen to Be Cleaned Without Loss of Air Pressure In Tank or Drain
• Dual Threaded with 1/4 Internal FPT Threads
• Zinc Die Cast Handle
  Flex Hose
• High Performance Annular Corrugated Stainless Steel Flexible Metal Hose
• Aids as a Vibration Isolator and Helps Correct Misalignment
• 304SS Corrugated Inner Core, Braid and External Ring
• Carbon Steel MPT Fittings with Corrosion Resistant Coating
• Maximum Working Temperature 800 F
• Maximum working Pressure is 629 psi @70 F (1/2" Hose)
