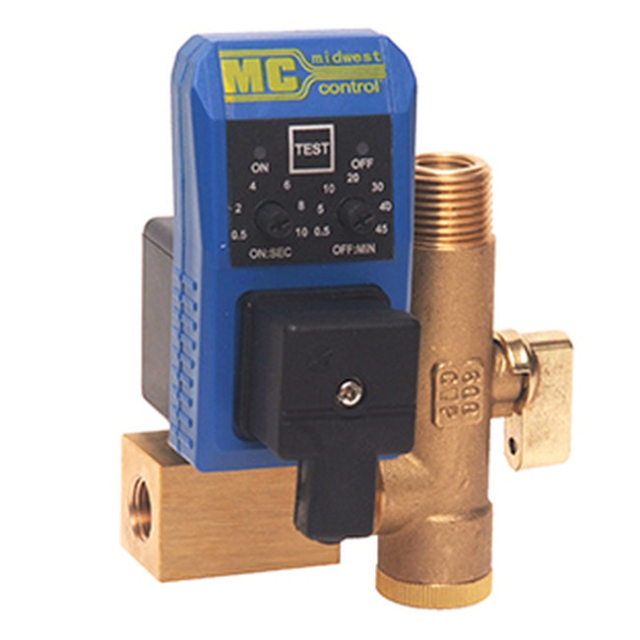

Midwest Control MCDV50-S 1/2 Condensate Timer Drain w/BPS Strainer 115V 230 PSI

Key Facts

• Timer-controlled condensate drain for compressed air systems, with 115V operation and a 230 PSI pressure rating.
• Includes a BPS strainer with a shut-off valve for strainer maintenance.
• 1/2" FNPT inlet and outlet connections.
• Adjustable interval and discharge times for setting the drain cycle.

Overview

The Midwest Control MCDV50-S is a 1/2" automatic condensate timer drain used to discharge accumulated moisture from compressed air systems. It is suitable for air receivers, filters, dryers, separators, and drip legs.

This configuration includes a BPS strainer. Its shut-off valve allows the strainer screen to be cleaned without loss of air pressure in the tank or drain.

Features

• Solid-state timer controls the interval between drain cycles and how long the valve opens.
• Included BPS strainer helps keep debris from reaching the drain valve.
• Strainer shut-off valve provides access for screen cleaning.
• Manual test switch allows an on-demand operation check.
• Yellow LEDs indicate on and off status.
• Can be mounted in any position.

Technical Specifications

• Manufacturer part number: MCDV50-S
• Connection size and type: 1/2" FNPT inlet and outlet
• Supply voltage: 115V
• Maximum drain pressure: 230 PSI
• Drain valve body: forged brass
• Drain valve orifice: 4.5 mm
• Timer: solid state
• Adjustable interval: 0.5 to 45 minutes
• Adjustable discharge time: 0.5 to 10 seconds
• Operating temperature: 34°F to 140°F
• Housing: fire-resistant ABS
• Enclosure rating: IP65 / NEMA 4
• Manufacturer-listed approvals: UL and CE
• Manufacturer warranty: 2 years

Use Cases

Use this timed drain at compressed air system points where condensate collects, including air receivers, filters, dryers, separators, and drip legs. The included BPS strainer is useful when inlet debris and access for strainer maintenance are considerations. Confirm the 115V supply, 1/2" FNPT connections, pressure rating, and required timer settings before ordering.

What’s Included

• Condensate timer drain
• BPS strainer
• 6 ft power cord

Category FAQs

Q: What is the difference between MCDV50 and MCDV50-S? A: The MCDV50-S includes a BPS strainer. Midwest Control does not list a strainer as included with the standard MCDV50.

Q: Is the BPS strainer a self-cleaning valve kit? A: No. Midwest Control lists the separate MCDV50-DK with a BABC self-cleaning drain kit.

Q: Can the strainer screen be cleaned without depressurizing the tank? A: Midwest Control states that the BPS strainer's shut-off design allows screen cleaning without loss of air pressure in the tank or drain.

Q: Can I test the drain without waiting for the next timed cycle? A: Yes. The MCDV50-S has a manual test switch.
