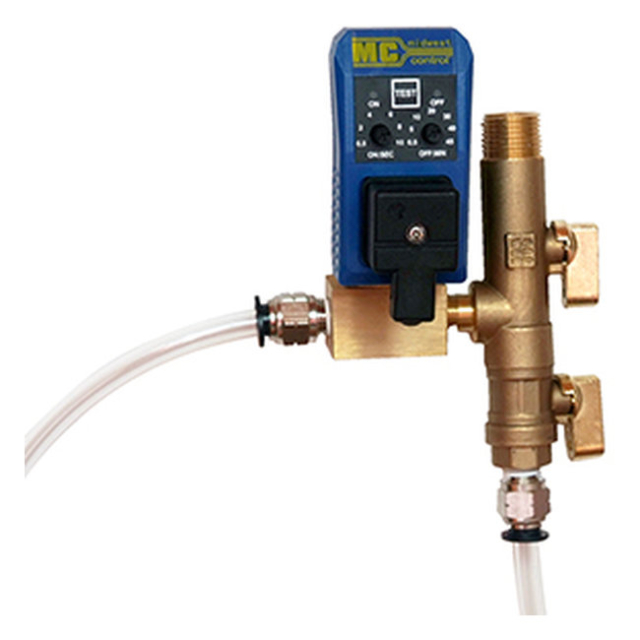

Midwest Control MCDV50-DK 1/2 Condensate Timer Drain w/Self Cleaning Valve Kit 115V 230 PSI

Key Facts

• Timer-controlled condensate drain for compressed air systems, rated for 115V operation and up to 230 PSI.
• 1/2" FNPT inlet and outlet connections.
• Includes a BABC self-cleaning drain kit and a 6 ft power cord.
• Adjustable interval and discharge times let users set the drain cycle for their application.

Overview

The Midwest Control MCDV50-DK is a 1/2" automatic condensate timer drain used to discharge accumulated moisture from compressed air systems. It is suitable for applications such as air receivers, filters, dryers, separators, and drip legs.

A solid-state timer controls the drain cycle. The included BABC kit provides a separate way to flush debris from the inlet strainer during maintenance.

Features

• Adjustable timer sets the interval between drain cycles and how long the valve opens.
• Manual test switch allows an operator to check drain operation.
• Self-cleaning valve kit supports periodic flushing of the inlet strainer.
• Yellow LEDs indicate on and off status.
• Can be mounted in any position.

Technical Specifications

• Manufacturer part number: MCDV50-DK
• Connection size and type: 1/2" FNPT inlet and outlet
• Supply voltage: 115V
• Maximum pressure: 230 PSI
• Valve body: forged brass
• Orifice: 4.5 mm
• Timer: solid state
• Adjustable interval: 0.5 to 45 minutes
• Adjustable discharge time: 0.5 to 10 seconds
• Operating temperature: 34°F to 140°F
• Housing: fire-resistant ABS
• Enclosure rating: IP65 / NEMA 4
• Manufacturer-listed approvals: UL and CE
• Manufacturer warranty: 2 years

Use Cases

This timed drain is used where condensate collects in a compressed air system, including air receivers, filters, dryers, separators, and drip legs. Buyers should confirm the 115V supply, 1/2" FNPT connections, pressure rating, and desired drain timing before ordering.

What’s Included

• Condensate timer drain
• BABC self-cleaning drain kit
• 6 ft power cord

Category FAQs

What does the self-cleaning valve do? Its separate lever allows compressed air to flush debris from the inlet strainer. The lever is normally closed and is opened briefly for cleaning; the timer controls routine condensate discharge.

Can the drain be tested without waiting for the next timed cycle? Yes. The unit has a manual test switch.

Where is a condensate timer drain commonly installed? Common locations include air receivers, filters, dryers, separators, and drip legs where condensate needs to be discharged.

What should I check before ordering? Confirm your available voltage, connection size, system pressure, operating temperature, and the interval and discharge settings your application requires.
