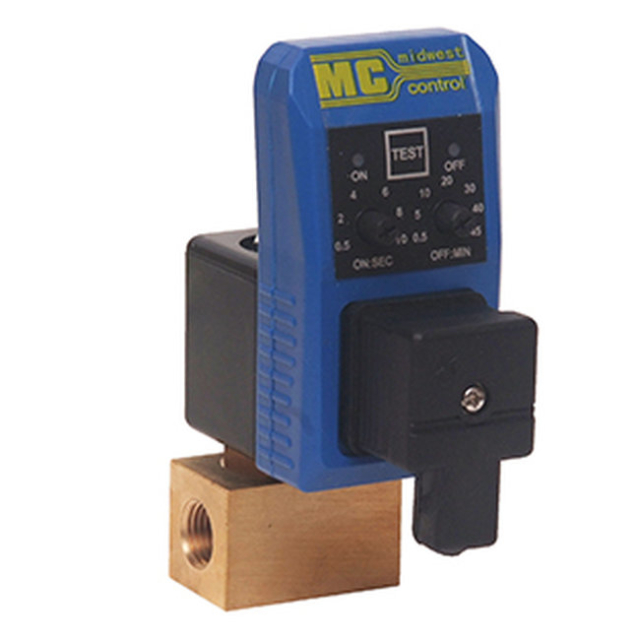

Midwest Control MCDV50 1/2 Condensate Timer Drain 115V 230 PSI

Key Facts

• Timer-controlled condensate drain for compressed air systems, with 115V operation and a 230 PSI pressure rating.
• 1/2" FNPT inlet and outlet connections.
• Adjustable interval and discharge times for setting the drain cycle.
• Standard MCDV50 model; a strainer or self-cleaning valve kit is not listed as included.

Overview

The Midwest Control MCDV50 is a 1/2" automatic condensate timer drain used to discharge accumulated moisture from compressed air systems. It is suitable for air receivers, filters, dryers, separators, and drip legs.

Its solid-state timer controls how often the valve opens and how long it remains open. A manual test switch allows the operator to check the drain without waiting for the next timed cycle.

Features

• Adjustable interval and discharge settings provide control over the timed drain cycle.
• Manual test switch allows an on-demand operation check.
• Yellow LEDs indicate on and off status.
• Can be mounted in any position.

Technical Specifications

• Manufacturer part number: MCDV50
• Connection size and type: 1/2" FNPT inlet and outlet
• Supply voltage: 115V
• Maximum pressure: 230 PSI
• Valve body: forged brass
• Orifice: 4.5 mm
• Timer: solid state
• Adjustable interval: 0.5 to 45 minutes
• Adjustable discharge time: 0.5 to 10 seconds
• Operating temperature: 34°F to 140°F
• Housing: fire-resistant ABS
• Enclosure rating: IP65 / NEMA 4
• Manufacturer-listed approvals: UL and CE
• Manufacturer warranty: 1 year; Midwest Control lists an additional year when a qualifying BPS or BPSC strainer is purchased and installed.

Use Cases

Use this timed drain at compressed air system points where condensate collects, such as air receivers, filters, dryers, separators, and drip legs. Confirm the 115V supply, 1/2" FNPT connections, pressure rating, and required drain settings before ordering.

What’s Included

• Condensate timer drain
• 6 ft power cord

Category FAQs

Q: Does the MCDV50 include a self-cleaning valve kit? A: Midwest Control lists the self-cleaning kit with the separate MCDV50-DK model, not with the standard MCDV50.

Q: Is a strainer included? A: A strainer is not listed among the included components for this model. Confirm the strainer needed for your installation before ordering.

Q: Can I test the valve without waiting for its timer? A: Yes. The MCDV50 has a manual test switch.

Q: How is this model different from the MCDV50-DK? A: Both are 115V timer drains rated to 230 PSI. The MCDV50-DK includes a BABC self-cleaning drain kit and carries a manufacturer-listed two-year warranty; the standard MCDV50 has a one-year warranty, with an additional year available under Midwest Control's stated strainer condition.
