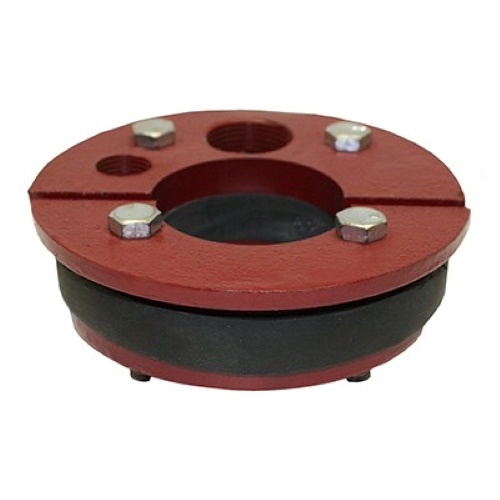

Merrill WS500200 5" WS Series Cast Iron Well Seal, Single Drop Pipe, Split Top Plate with 2" Drop Pipe

Overview

This essential well sealing component, the Merrill WS500200 5" WS Series Cast Iron Well Seal, is expertly designed to provide a secure and robust seal for water wells. It effectively addresses the critical need for well integrity, preventing the infiltration of surface contaminants and ensuring the purity of your water source. With its durable construction and a unique split top plate design, the WS500200 simplifies installation while delivering a high-performance, long-lasting barrier for 5-inch diameter wells utilizing a 2-inch drop pipe. This professional-grade well seal is ideal for contractors and well technicians seeking a reliable solution for new well installations or replacements to upgrade existing systems.

Key Features

• **Durable Painted Cast Iron Construction**: Offers exceptional resistance to corrosion and wear, ensuring longevity in demanding subterranean environments.
• **Split Top Plate Design**: Facilitates easier installation and maintenance by allowing access without disturbing the entire wellhead assembly.
• **Heavy-Duty 3/4" Thick Rubber Packer**: Provides a superior, watertight seal against external elements, enhancing well safety and water quality.
• **Individually Boxed and Labeled**: Streamlines inventory management and product identification for efficient job site operations.

Specifications

**Well Size**: 5" I.D.

**Drop Pipe**: 2"

**Cable Tapping**: 1"

**Vent Tapping**: 1/2"

**Packer Thickness**: 3/4"

**Material**: Painted Cast Iron

**Type**: Single Drop Pipe, Split Top Plate

Applications

This Merrill WS500200 well seal is specifically engineered for professional well drillers, pump installers, and water system technicians. It is an ideal component for securing submersible pump installations in a wide range of applications, including residential potable water systems, agricultural irrigation wells, and light commercial water supply projects. Its design is particularly beneficial where a 5-inch well casing and a 2-inch drop pipe are utilized, ensuring a robust and contaminant-free well system.

Performance and Characteristics

The Merrill WS500200 well seal delivers reliable performance by creating a tight, dependable barrier against external contaminants. The 3/4" thick rubber packer compresses firmly within the well casing, forming a superior seal that withstands typical well pressures and environmental conditions. The painted cast iron body provides exceptional structural integrity and corrosion resistance, contributing to the product's extended service life. The split top plate design, while aiding in installation, maintains a secure and rigid connection, ensuring continuous well protection.

Additional Information

Manufactured by Merrill, a leader in water well components, the WS500200 well seal meets stringent quality standards. Its lead-free, painted cast iron construction ensures both durability and safety in water systems. This product is designed for straightforward integration into well systems, providing a professional-grade solution for maintaining clean and secure water sources.

**Enhance your well's security and safeguard water purity. Shop the Merrill WS500200 WS Series Well Seal Now!**
