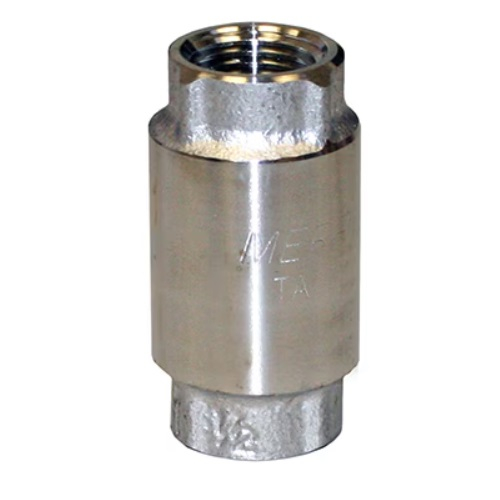

Merrill CVSE50 1000 Series 1/2" Stainless Steel Check Valve with Viton O-Ring

Overview

This high-performance fluid control component, the Merrill CVSE50 1000 Series 1/2" Stainless Steel Check Valve with Viton O-Ring, is engineered to provide reliable backflow prevention in demanding liquid systems, particularly those involving agricultural chemicals. It directly addresses the critical need to maintain fluid direction and prevent costly drain-back or contamination, ensuring system integrity and operational efficiency. Professionals managing challenging media will benefit from its robust 304 stainless steel construction, specialized "no-spin" poppet design, and Viton O-ring seal, which combine to offer exceptional durability, precise operation, and chemical compatibility even in harsh environments. Designed for direct installation above submersible pumps, this valve guarantees long-lasting and dependable performance.

Key Features

• Solid 304 Stainless Steel Construction: Ensures superior corrosion resistance and exceptional durability, capable of withstanding harsh chemical environments and high-pressure applications.
• "No-Spin" Poppet Design: Specifically engineered for demanding installations directly above submersible pumps, ensuring straight, reliable operation and eliminating wear caused by rotation.
• Viton O-Ring Seal: Includes a high-grade Viton O-ring, providing excellent chemical resistance and a reliable seal to prevent drain-back, especially suitable for aggressive fluid applications.
• High Pressure and Temperature Rating: Rated for a maximum of 450 PSI and a temperature range of -4°F to 392°F, making it suitable for a wide array of demanding industrial conditions.
• Low Opening Pressure: Only requires 1.5 PSI to open, ensuring efficient system operation and minimal resistance to fluid flow.

Specifications

Series: 1000 Series

Valve Type: Check Valve

Connection Size: 1/2"

Construction Material: Solid 304 Stainless Steel (Valve body, poppet, spring, lock nut, nut retaining cup)

O-Ring Material: Viton

Poppet Design: No-Spin Poppet with Delrin guide bearing

Maximum Pressure Rating: 450 PSI

Tension Rating (Down Pull): 2000 lbs.

Minimum Opening Pressure: 1.5 PSI

Temperature Range (CVSE/FVSE with Viton O-ring): -4°F to 392°F

Typical Temperature Range (CVS/FVS): Max 190°F (Note: CVSE model features Viton for extended range)

Application Note: Ideal for Ag chemical applications (WARNING: Not to be used with anhydrous ammonia)

Pack Quantity: 10 pcs

Applications

Ideal for plumbing contractors, agricultural chemical applicators, industrial process engineers, and pump system installers who require robust backflow prevention in challenging environments. The Merrill CVSE50 1000 Series Stainless Steel Check Valve with Viton O-Ring is an indispensable component for:

• Agricultural Chemical Systems: Preventing drain-back and ensuring precise application in irrigation and spraying systems handling various ag chemicals (excluding anhydrous ammonia).
• Submersible Pump Installations: Ideal for direct placement above submersible pumps to maintain prime, prevent water hammer, and extend pump lifespan in deep well applications.
• Industrial Process Lines: Critical for ensuring unidirectional flow in manufacturing and chemical processing plants, safeguarding against backflow contamination and system damage.
• High-Pressure & High-Temperature Systems: Suitable for fluid control applications where elevated pressures and temperatures demand superior material integrity and sealing performance.

Performance and Characteristics

Reliable Backflow Prevention: The precision-engineered no-spin poppet and low 1.5 PSI opening pressure ensure immediate and effective closure, preventing drain-back and maintaining system prime, which is crucial for pump efficiency and preventing contamination.

Exceptional Durability and Longevity: Constructed from solid 304 stainless steel for all critical components, this valve offers unparalleled resistance to corrosion, wear, and fatigue, even in aggressive chemical or high-tension (2000 lbs. down pull) environments.

Optimized for Harsh Environments: The inclusion of a Viton O-ring seal provides superior chemical compatibility and thermal stability, enabling reliable performance across a broad temperature range (-4°F to 392°F) and with various fluid media.

Smooth, Wear-Free Operation: The Delrin guide bearing around the poppet stem ensures straight, quiet, and friction-free operation, significantly extending the valve's service life by eliminating common wear points.

Robust System Protection: Designed to withstand demanding installation conditions and operational stresses, this valve acts as a critical safeguard for plumbing and pumping systems, reducing maintenance needs and costly repairs.

Additional Information

The Merrill CVSE50 1000 Series Check Valve embodies superior engineering for challenging fluid control applications. Its all-stainless steel components, combined with the specialized no-spin poppet and high-performance Viton O-ring, signify a commitment to unparalleled reliability and longevity. This valve is a strategic investment for professionals seeking to enhance the safety, efficiency, and durability of their pumping and fluid transfer systems, particularly where aggressive chemicals or demanding operational conditions are present. Its robust design ensures continuous, worry-free performance, reducing downtime and protecting valuable assets.

Ensure robust backflow prevention and system integrity in your demanding fluid applications. Shop the Merrill CVSE50 1000 Series Check Valve Now!
