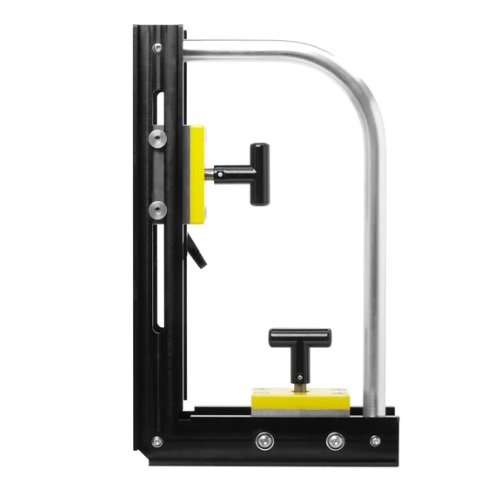

Magswitch 8100503 90 Degree Angle Magnet 1000 lbs

Overview

Elevate your workholding capabilities with the innovative Magswitch 8100503 90 Degree Angle Magnet. This adaptable magnetic tool provides exceptional versatility, allowing for precise positioning of its integrated MagSquares along both axes to accommodate various flat and round steel workpieces. Experience the convenience of a mechanically switched 1052 pounds of magnetic holding force, making it an indispensable tool for professional welding, fabrication, assembly, and other metalworking applications. Its robust design requires no electricity, ensuring reliable operation in any environment.

Key Features

• Powerful 1052 lbs Magnetic Hold: Ensures secure and stable positioning of workpieces.
• Adjustable MagSquares: Slide along each axis for precise and adaptable positioning.
• Mechanical On/Off Switch: Provides instant and reliable magnetic engagement and disengagement without electricity.
• Versatile Surface Compatibility: Securely holds both flat and round steel surfaces.
• Clean Operation: Easily switch off to release and remove metal shavings.
• Lightweight and Maneuverable: Facilitates easy handling and precise placement.

Specifications

• Brand: Magswitch
• Model: 8100503
• Type: 90 Degree Angle Magnet
• Maximum Breakaway Force: 1052 lbs (477 kg)
• Full Saturation Thickness: 0.5 in (12.7 mm)
• 2:1 Shear Working Load: 350 lbs (159 kg)
• Product Weight: 9.4 lbs (4.2 kg)
• Dimensions: 5.9 x 4.3 x 5.4 in (149.8 x 109.2 x 137.1 mm)
• Magnetic Pole Footprint: 72 mm x 108 mm

Applications

Ideally suited for professional welding and fabrication tasks requiring precise 90-degree alignment and secure holding of workpieces. Essential for assembly and fixturing applications where strong, temporary magnetic fixtures are needed. Highly effective in metalworking and machining for securely holding parts during various operations. Useful in construction and maintenance for temporarily securing metal components. Key applications include holding workpieces at accurate 90-degree angles, creating robust temporary fixtures, securing metal parts for welding or assembly processes, and aligning components for precise fabrication.

Performance and Characteristics

The Magswitch 8100503 delivers a powerful 1052 lbs of magnetic holding force, ensuring exceptional stability for workpieces during demanding operations. The innovative adjustable MagSquares allow for precise positioning along both axes, providing unparalleled versatility in accommodating various workpiece sizes and shapes. The mechanical on/off switch offers instant and reliable magnetic control without the need for electricity, enhancing safety and convenience. Its ability to securely hold both flat and round steel surfaces expands its application range. The clean on/off operation simplifies the removal of metal debris, maintaining a cleaner work environment. Its lightweight design allows for easy handling and maneuverability, while its precision ensures optimal workholding accuracy.

Additional Information

Manufactured by Magswitch, a leading innovator in magnetic workholding technology, known for its high-performance and user-friendly solutions. The mechanical on/off switching mechanism is a hallmark of Magswitch products, offering reliable and safe operation. The adjustable MagSquares provide a significant advantage over fixed magnetic angles, allowing for greater flexibility in positioning and accommodating different workpiece configurations. The robust construction ensures durability and long-lasting performance in professional environments. This 90-degree angle magnet is a significant upgrade for any metalworking professional seeking enhanced efficiency and versatility in their workholding.

Kit Contents

• Magswitch 8100503 90 Degree Angle Magnet
• Two (2) MagSquares

Revolutionize your workholding with the adjustable power and versatility of the Magswitch 8100503 90 Degree Angle Magnet. Upgrade your productivity today!
