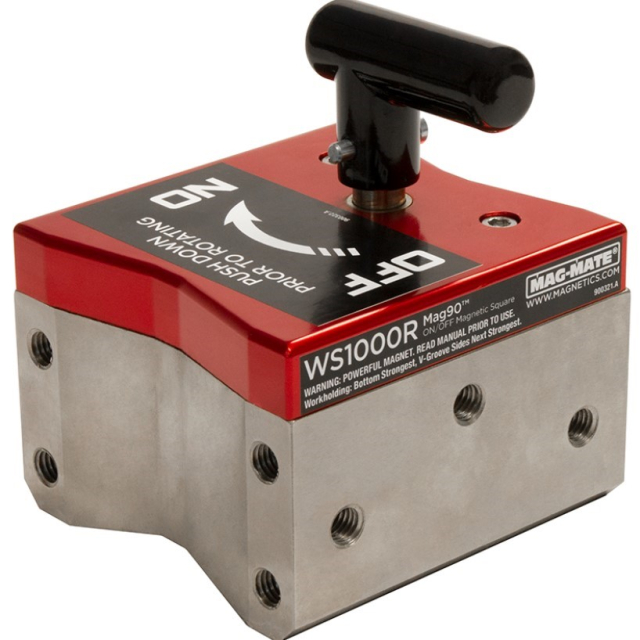

Industrial Magnetics Mag-Mate WS1000R Magnetic Welding Square, Flat Part Holding Value 1000 lbs

Overview

This heavy-duty magnetic welding tool, the Industrial Magnetics Mag-Mate WS1000R Magnetic Welding Square, is engineered for professional welders and fabricators requiring exceptionally strong and precise 90-degree alignment of flat workpieces. This powerful magnetic square, also known as the Mag90, features a switchable rare earth magnet that delivers an impressive 1000 lbs of holding force, ensuring unparalleled stability during welding and assembly. It replaces bulky clamps and fixturing, significantly streamlining workflow. The robust steel construction is built for demanding industrial environments, and the convenient on/off functionality allows for effortless placement, adjustment, and cleanup. Its design is ideal for securing flat or round steel surfaces, and the inclusion of tapped mounting holes provides options for secure attachment to jigs and fixtures. A locking on/off handle enhances safety during operation.

Key Features

• 1000 lbs Holding Force: Provides extremely powerful grip for secure workpiece alignment.
• Precise 90° Angle: Ensures accurate right-angle setups for high-quality welds and assemblies.
• Switchable On/Off Magnet: Offers easy activation and release for quick positioning and removal.
• Versatile Application: Ideal for securely holding flat and round steel surfaces.
• Durable Steel Construction: Built for long-lasting performance in demanding industrial use.
• Tapped Mounting Holes: Allows for secure and stable attachment to fixtures and jigs.
• Locking On/Off Handle: Enhances user safety during operation.

Specifications

• Brand: Industrial Magnetics
• MPN: WS1000R
• Type: Magnetic Welding Square (Mag90)
• Angle: 90 Degrees
• Holding Force: 1000 lbs
• Material: Steel, Rare Earth Magnet
• Dimensions: 4.8" H x 4" W x 4.3" L
• Maximum Operating Temperature: 180°F (82°C)
• Additional Features: Tapped mounting holes, locking on/off handle

Applications

Essential for professional welders and fabricators working on large or heavy steel components requiring precise 90-degree alignment for welding frames, constructing heavy-duty assemblies, and creating accurate box joints. Ideal for use in fixturing and jigging applications where a strong, switchable magnetic hold is needed for repetitive welding tasks. Suitable for shipbuilding, bridge construction, and other heavy metal fabrication projects. The tapped mounting holes allow for integration into automated welding systems or custom workholding setups.

Performance and Characteristics

The Industrial Magnetics WS1000R delivers an exceptional 1000 lbs of holding force, providing unparalleled stability for even the most demanding welding and assembly tasks. The precise 90-degree angle ensures accurate right-angle setups, leading to higher quality welds and more precise assemblies. The switchable rare earth magnet allows for easy and controlled engagement and disengagement, significantly improving setup and teardown times. The robust steel construction is engineered to withstand the rigors of heavy industrial use, ensuring long-term reliability. The tapped mounting holes offer added versatility for integrating the square into custom fixtures, and the locking on/off handle provides an extra layer of safety during operation, preventing accidental activation or deactivation.

Additional Information

Manufactured by Industrial Magnetics, a leading provider of high-performance magnetic workholding solutions for industrial professionals. The use of powerful rare earth magnets ensures an exceptionally strong and reliable holding force. The durable steel construction provides excellent resistance to the stresses of heavy welding and fabrication. The inclusion of tapped mounting holes expands the utility of this magnetic square, allowing for secure attachment to various workholding systems. The locking on/off handle is a crucial safety feature for high-force magnetic tools.

Kit Contents

• Industrial Magnetics Mag-Mate WS1000R Magnetic Welding Square

Tackle your toughest welding and fabrication projects with unmatched precision and holding power. Invest in the Industrial Magnetics Mag-Mate WS1000R Magnetic Welding Square today!
