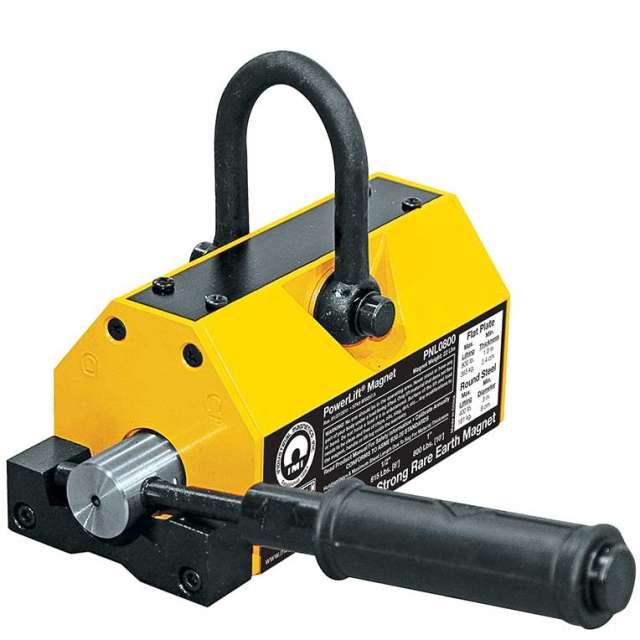

Industrial Magnetics Mag-Mate PNL0800 Rare Earth PowerLift Magnet, Working Load Limit 800 lbs

Industrial Magnetics PNL0800 Rare Earth PowerLift Magnet | 800 lbs Working Load Limit

• ON/OFF Rare Earth design

• Lifts flat or round loads

• Easy internal manual release does not contact the load

• Heat resistant up to 180°F (82°C)

• ASME B30.20 BTH-1 Design Category B Service Class 3

The Industrial Magnetics PNL0800 PowerLift Magnet is a compact yet powerful lifting solution for thick, non-flexing steel. Ideal for flat or round surfaces, this rare earth magnet features an internal on/off release mechanism that ensures secure lifting without damaging the material. The permanent magnetic design eliminates the risk of load drops due to power failures, while the lock-on/lock-off mechanism adds an extra layer of safety.

Key Features:

• Powerful Lifting Capacity: 800 lbs. working load limit (33% of actual value)
• Versatile Design: Lifts both flat and round loads
• Easy Operation: Internal manual release for convenient and safe operation
• Non-Marring: Protects surfaces from damage
• Safety Features: Lock-on/lock-off mechanism for added security
• Heat Resistant: Withstands temperatures up to 180°F (82°C)
• ASME Compliant: Meets ASME B30.20 BTH-1 Design Category B Service Class 3 standards

Specifications:

• Brand: Industrial Magnetics
• MPN: PNL0800
• Material: Rare Earth Magnet
• Working Load Limit: 800 lbs.
• Max. Sheet Length: Varies based on material thickness (see product details)

Additional Details:

• Condition: New
• Applications: Material handling, lifting and positioning steel plates, pipes, etc.

Important Note: Consult the provided working load limit chart for specific lifting capacities based on material thickness. For sheets over 8', use multiple lifts on a spreader bar to prevent flexing or peel-off.

The new handle on the PowerLift Rare Earth lift magnet features a positive lock-on and lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only "partially on" and giving the operator a false sense of security that the magnet is holding safely, or from being accidentally bumped to the "off" position, dropping the load pre-maturely.

Working Load Limit in lbs & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use:

• 1/4" (6') - 270

• 3/8" (8') - 500

• 1/2" (8') - 615

• 3/4" (8') - 800

• 1" (10') - 800

• 2" (10') - 800

• 3" (10') - 800

Working Load Limit (WLL) Values for the PowerLift Magnets are stated at 33% of the actual value. We recommend when lifting sheets over 8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round WLL Values are based on ideal conditions. Consult the factory before specifying these magnets for use on round materials. *Max. sheet lengths are selected due to sag characteristics of specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles to properly engage and release the part. CF = Consult Factory, NA = Not Applicable (Magnets will not turn "ON" with stated thicknesses.)
