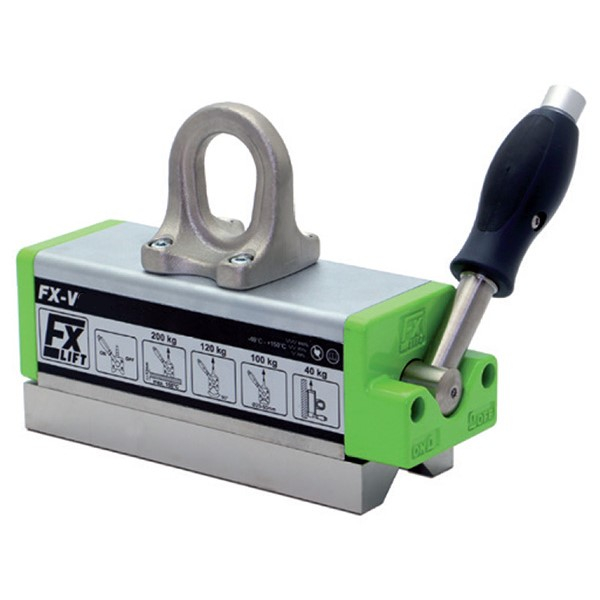

Industrial Magnetics Mag-Mate FXV0880 Lift Magnet for Beams, Angle Iron (90 Degree) and Hot Parts, Working Load Limit 88 lbs

Overview

The Industrial Magnetics Mag-Mate FXV0880 Lift Magnet is a specialized on/off permanent Rare-Earth lift magnet designed for handling beams, angle iron (90 degrees), and hot parts. With a Working Load Limit (WLL) of 88 lbs, it offers strength in a lightweight and compact package. Its unique handle design, requiring only a 90° rotation, and positive lock mechanism enhance safety and ease of use. This product solves the problem of needing a versatile and safe magnetic lifting solution for specific industrial applications involving beams, angle iron, and hot materials.

Key Features

90° Handle Rotation: Easy engagement and disengagement, ideal for confined spaces.
Positive Lock-On/Lock-Off Mechanism: Prevents accidental release of the load.
Rare-Earth Permanent Magnet: Provides strong and reliable lifting power.
Heat Resistant: Handles parts up to 180°F (82°C) and up to 482°F for specific applications.
Versatile Lifting: Lifts flat sheets, curved pipes, angle iron, and beams.

Specifications

Model: FXV0880
Type: On/Off Permanent Rare-Earth Lift Magnet
Working Load Limit (WLL): 88 lbs
Handle Rotation: 90 degrees
Heat Resistance: Up to 180°F (82°C), up to 482°F for specific applications
Design Factor: 3:1
Compliance: 2018 ASME B30.20 BTH-1 Design Category B Service Class

Applications

This lift magnet is specifically designed for handling beams, angle iron (90 degrees), and hot parts. It is used in fabrication shops, steel yards, and industrial settings where these materials are commonly processed. The FXV0880 is ideal for applications requiring precise and safe lifting in confined spaces and high-temperature environments.

Performance and Characteristics

The Industrial Magnetics Mag-Mate FXV0880 provides strong and reliable magnetic lifting with its Rare-Earth permanent magnet. The 90° handle rotation and positive lock mechanism enhance safety and ease of use, preventing accidental load release. The heat resistance allows for handling hot parts, increasing its versatility. The compact and lightweight design makes it easy to maneuver in confined spaces. The 3:1 design factor and ASME compliance provide added safety and reliability. It is designed to improve efficiency and safety in material handling operations.

Additional Information

Handle Design: Unique handle design requires only a 90° rotation for engagement and disengagement.
Safety Mechanism: Handle locks in both the On & Off positions for safety.
Material Handling: Designed for lifting flat sheets, curved pipes, angle iron, and beams.
Heat Application: Specifically designed for angle iron and beam web lifting, as well as hot parts up to 482°F.
The 90° handle rotation allows for easy operation in tight spaces, improving efficiency. The positive lock-on/lock-off mechanism prevents accidental release of the load, enhancing safety. The heat resistance allows for handling hot materials, expanding its range of applications. The Rare-Earth magnet provides strong and reliable lifting power, ensuring secure material handling. The compact and lightweight design makes it easy to handle and maneuver, improving productivity.

Enhance your material handling with the Industrial Magnetics Mag-Mate FXV0880 Lift Magnet. Experience safe, efficient, and versatile lifting for beams, angle iron, and hot parts.
