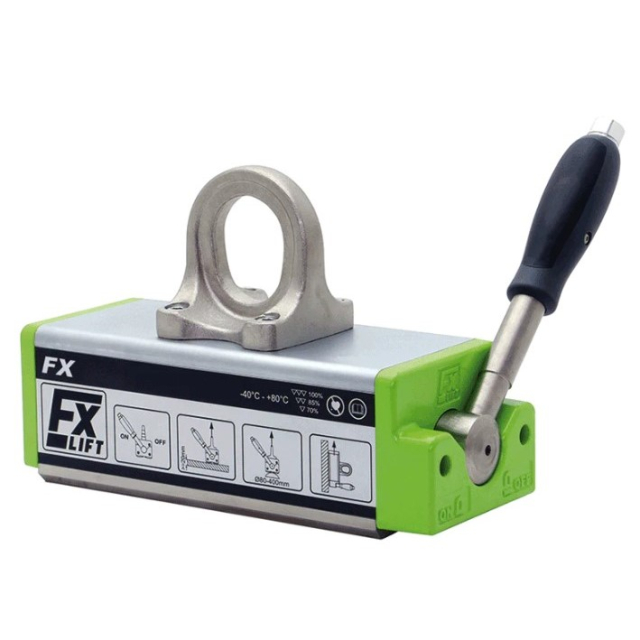

Industrial Magnetics Mag-Mate FX4400 Lift Magnet for Flats Sheets and Select Round Materials, Working Load Limit 4400 lbs

Overview

The Industrial Magnetics Mag-Mate FX4400 Lift Magnet is a powerful and versatile permanent rare-earth lift magnet designed for efficient handling of flat sheets and select round materials. As part of the FX series, this magnet offers a strong lifting capacity (4400 lbs) in a relatively lightweight and compact form factor. It addresses the challenge of safely and efficiently lifting heavy steel materials, particularly for professionals who primarily handle flat stock but occasionally need to lift curved items like pipes or shafts. The FX4400's unique handle design and safety features enhance usability and minimize the risk of accidents, making it a valuable tool in demanding industrial environments.

Key Features

• Powerful Rare-Earth Magnet: Utilizes rare-earth magnets to provide exceptional lifting strength in a compact and lightweight design, enabling efficient handling of heavy loads with reduced operator strain.
• 90° Rotation Handle: Features a unique handle design that requires only a 90° rotation to engage or disengage the magnet, simplifying operation, especially in confined spaces like bins or troughs.
• Positive Lock-On/Lock-Off Mechanism: Incorporates a safety mechanism that requires manual switching between on and off states, preventing accidental disengagement and premature load dropping.
• Versatile Lifting Capability: Designed primarily for lifting thick, flat stock but can also handle curved materials such as pipes, shafts, or billets, providing flexibility in material handling operations.
• Heat Resistant Design: Constructed to withstand temperatures up to 180°F (82°C), ensuring reliable performance in hot industrial environments.

Specifications

• Model: FX4400
• Magnet Type: Rare-Earth Permanent Magnet
• Working Load Limit: 4400 lbs
• Handle Rotation: 90°
• Heat Resistance: Up to 180°F (82°C)
• Design Factor: 3:1
• Safety Compliance: Meets 2018 ASME B30.20 BTH-1 Design Category B Service Class

Applications

The Mag-Mate FX4400 is ideal for professionals in various industries:

• Steel Fabrication Workers: Lifting and positioning steel plates and sheets for cutting, welding, and forming processes, enhancing workflow and reducing material handling time. Example: A steelworker using the FX4400 to move a large steel sheet onto a cutting table.
• Metalworking Professionals: Handling heavy metal stock in machining and assembly operations, improving safety and efficiency in moving materials between workstations. Example: A machinist using the FX4400 to load steel bars onto a lathe.
• Warehouse and Storage Personnel: Loading and unloading steel materials from trucks and organizing stock in storage facilities, streamlining material handling and improving inventory management. Example: A warehouse worker using the FX4400 to unload steel plates from a delivery truck.

Performance and Characteristics

The FX4400 provides strong lifting power with a 3:1 design factor, ensuring a safety margin for lifting operations. The rare-earth magnets offer a powerful grip, while the 90° handle rotation significantly improves ease of use compared to magnets with larger rotation angles. The positive lock mechanism is a critical safety feature, preventing accidental release of the load. This magnet is designed for durability and reliable performance in industrial settings, handling both flat and curved ferrous materials. However, it's optimized for flat stock, and lifting capacity can vary based on the material's surface condition, thickness, and alloy.

Additional Information

This Mag-Mate lift magnet is manufactured by Industrial Magnetics, Inc., a reputable provider of magnetic solutions for industrial applications. The rare-earth magnets used in its construction provide a strong magnetic force without requiring an external power source. Adherence to ASME B30.20 safety standards ensures compliance with industry best practices for lifting devices. The 3:1 design factor is a crucial safety consideration, indicating that the magnet is designed to lift three times its rated load before failure, providing an extra layer of safety during operation. While versatile, it's important to note that this magnet is most effective when lifting flat materials with good surface contact.

Enhance your material handling efficiency and safety with the versatile Mag-Mate FX4400 Lift Magnet. Order yours today!
