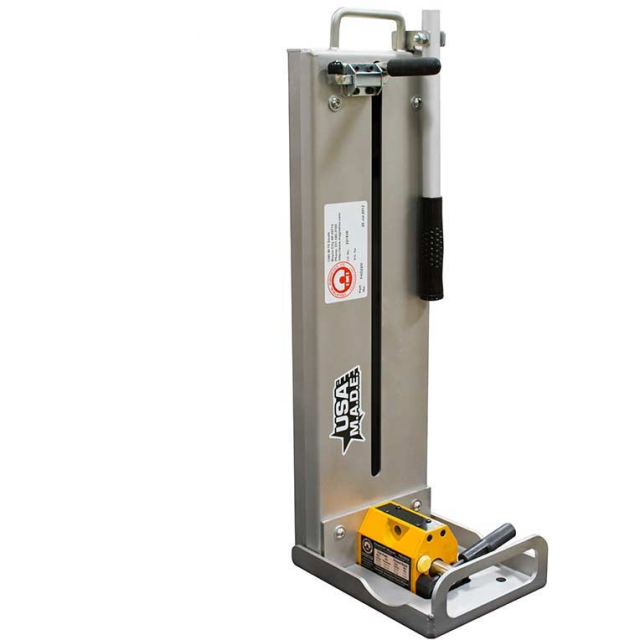

Industrial Magnetics Mag-Mate FHD22M Magnetic SheetSeeker with Optional Magnetic Base, Height 22 in

Overview

The **Industrial Magnetics Mag-Mate FHD22M Magnetic SheetSeeker** is a breakthrough **magnetic sheet fanner** engineered for **automatic and efficient separation of stacked steel sheets**. Featuring a powerful, rare earth, automatic-indexing magnetic circuit, this innovative tool simplifies material handling by fanning individual sheets from the top of a stack down to the very last one, enhancing safety and productivity in metalworking environments.

This SheetSeeker directly addresses the critical challenge of manual sheet separation, which can be time-consuming, labor-intensive, and hazardous, especially for oily, thin, or sticky sheets. Up to 60% lighter than standard fanners of comparable strength, it minimizes worker fatigue while delivering robust performance. Ideal for metal fabricators, stamping operations, and press feeding lines, the FHD22M provides a continuous supply of separated sheets, reducing bottlenecks, preventing part damage, and significantly boosting overall operational efficiency. An **optional magnetic base** further enhances its versatility for various setups.

Key Features

• Automatic-Indexing Magnetic Circuit: Features powerful Rare Earth magnets that automatically adjust downwards, ensuring optimal fanning action down to the last sheet.
• Superior Weight-to-Strength Ratio: Up to 60% lighter than conventional sheet fanners of equivalent strength, minimizing physical strain during transport and positioning.
• Durable & Lightweight Construction: Built with robust stainless steel and designed for durability, complemented by convenient carry handles for easy transport.
• Wide Material Thickness Range: Capable of efficiently fanning a diverse range of steel sheet stock, from 30 gauge thin sheets up to 3/16" plate.
• Integrated Slide Handle with Locks: Allows for precise positioning of the fanning circuit and secures it in place, enhancing control and safety during operation.

Specifications

Part Number: FHD22M

Product Type: Magnetic Sheet Fanner / Separator

Magnet Type: Rare Earth, Permanent Magnetic Circuit

Height: 22 inches (558.8 mm)

Net Weight: 32 lbs (14.51 kg)

Dimensions (L x W x H): 6.67 x 9.46 x 25 inches (169.4 x 240.3 x 635 mm)

Material Thickness Range: 30 gauge sheets to 3/16 inch plate

Construction Material: Stainless Steel

Base: Optional Magnetic Base compatible

Applications

Ideal for **metal fabricators, stamping plant operators, press feeders, laser cutting facilities, and general warehouse personnel** involved in handling stacked steel sheets. The **Industrial Magnetics Mag-Mate FHD22M Magnetic SheetSeeker** is essential for applications such as: **automated press feeding lines, manual sheet metal loading, preparing material for shearing or punching, and any process requiring rapid and safe separation of individual steel sheets from a stack**. Its ability to fan various thicknesses makes it invaluable in diverse manufacturing, automotive, and industrial environments where efficiency, safety, and reduced labor costs are paramount for sheet metal handling.

Performance and Characteristics

The **Industrial Magnetics Mag-Mate FHD22M Magnetic SheetSeeker** delivers exceptional performance in magnetic sheet separation through its advanced, automatic-indexing Rare Earth magnetic circuit. This powerful design ensures consistent and reliable fanning action, actively adjusting downwards as each sheet is removed, thus maintaining optimum separation force even as the stack diminishes. A key characteristic is its remarkable strength-to-weight ratio; being up to 60% lighter than comparable fanners, it significantly reduces operator fatigue while providing the robust magnetic power needed for demanding applications. Its durable, lightweight stainless steel construction ensures longevity in industrial settings, and the integrated carry handles facilitate easy transport. The precise slide handle with top locks allows for accurate positioning and stable operation, ensuring that the FHD22M efficiently fans a broad range of steel thicknesses from delicate 30 gauge sheets to robust 3/16" plate, ultimately boosting productivity and enhancing safety in metal handling operations.

Kit Contents

• 1 x Industrial Magnetics Mag-Mate FHD22M Magnetic SheetSeeker (Height 22 in)

Revolutionize your sheet metal handling with automatic, powerful fanning. Shop the Industrial Magnetics Mag-Mate FHD22M SheetSeeker now!

Enhance productivity and safety in your metal fabrication operations. Order your FHD22M Magnetic SheetSeeker today!

Achieve effortless and consistent sheet separation for diverse steel thicknesses. Discover the Mag-Mate FHD22M!
