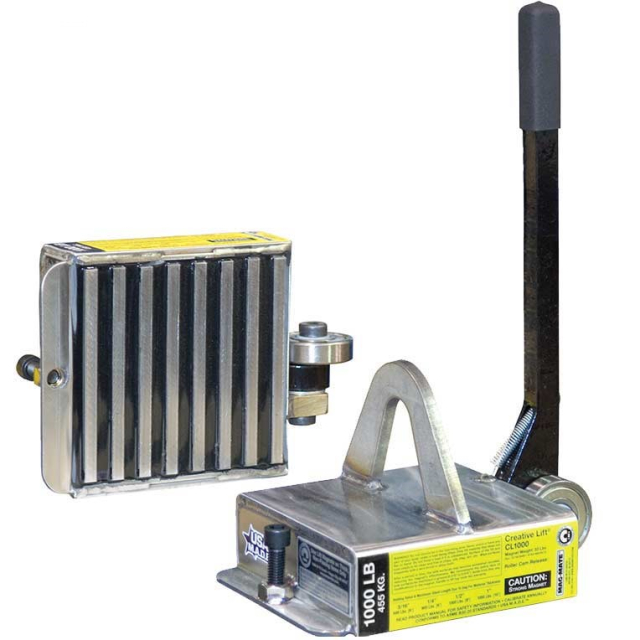

Industrial Magnetics Mag-Mate CL1000 Ceramic Creative Lift Magnet, Working Load Limit 1000 lbs

Overview

The Industrial Magnetics Mag-Mate CL1000 Ceramic Creative Lift Magnet is a versatile permanent lift magnet designed for handling thick, non-flexing steel sheets and parts. With a Working Load Limit (WLL) of 1000 lbs, it simplifies material handling by eliminating the need for slings, chains, or clamps, allowing for single-person operation. It features a non-marring roller cam release, a durable stainless steel casing, and is ideal for various industrial applications. This product solves the problem of needing a safe, efficient, and reliable lifting solution for moderate steel material handling.

Key Features

Moderate Lifting Capacity: Working Load Limit of 1000 lbs for handling steel materials.
Non-Marring Roller Cam Release: Easily releases parts without damaging valuable materials.
Spring Return Handle: Ensures easy and safe operation.
"Jack Screw" Secondary Release: Provides an additional release mechanism for enhanced safety.
Durable Stainless Steel Casing: Offers long-lasting performance and corrosion resistance.

Specifications

Model: CL1000
Type: Ceramic Creative Lift Magnet
Working Load Limit (WLL): 1000 lbs
Design Factor: 3:1
Heat Resistance: Up to 300°F (148°C)
Casing Material: Stainless Steel
Compliance: ASME B30.20 BTH-1 Design Category B Service Class 3

Applications

This magnet is ideal for handling steel plates, die castings, and forgings in manufacturing, fabrication, and industrial settings. It is used in machine shops, metalworking facilities, and general industrial environments. The CL1000 is perfect for applications requiring a reliable and efficient lifting solution for moderately heavy steel materials.

Performance and Characteristics

The Industrial Magnetics Mag-Mate CL1000 provides a strong and reliable magnetic hold, ensuring secure material handling. The non-marring roller cam release prevents damage to valuable materials. The spring return handle and "jack screw" secondary release enhance safety and ease of use. The durable stainless steel casing ensures long-lasting performance in demanding environments. The 3:1 design factor and ASME compliance provide added safety and reliability. The magnet performs well on thick, non-flexing steel sheets and parts. It is designed to improve efficiency and safety in material handling operations.

Additional Information

Material Thickness and Sheet Length: See WLL chart for specific material thickness and sheet length recommendations.
Magnetic Pole Coverage: The item to be lifted must cover the entire length and width of the magnetic poles for proper engagement and release.
Lifting Sheets Over 8': Use two or more lifts on a spreader bar to prevent sheet flexing, sagging, or peel-off.
Thin Material Lifting: Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once.
Round Material Lifting: Consult the factory before specifying these magnets for use on round materials.
Working Load Limit Notes: WLL values are stated at 33% of the actual value. Round WLL values are based on ideal conditions.

Simplify your moderate steel material handling with the Industrial Magnetics Mag-Mate CL1000 Ceramic Creative Lift Magnet. Experience safe, efficient, and reliable lifting.
