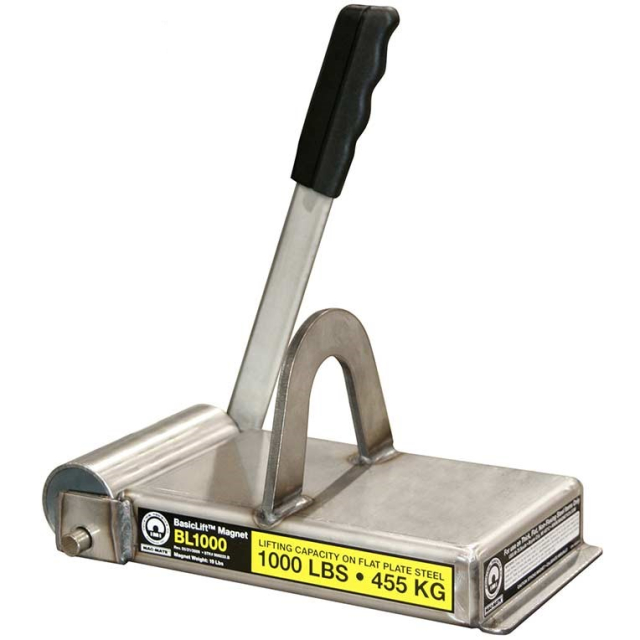

Industrial Magnetics Mag-Mate BL1000 Permanent Ceramic Lift Magnet, Working Load Limit 1000 lbs

IMI's new BasicLift Magnet is a powerful, no frills permanent ceramic lift magnet perfect for basic, flat steel lifting, angle iron, square tube and other lifting applications. Featuring a lightweight and durable Stainless Steel design, the BasicLift has a full width cam to release the magnet from the steel surface and a tall lift lug for easy use with crane hooks and slings.

The BasicLift offers a good value for your dollar with strong lifting capacity and basic lifting features.

• Full width cam release
• Large lift lug
• Lightweight Design
• Durable Stainless Steel Casing
• Heat resistant up to 300°F (148°C)
• 2:1 Design Factor

Working Load Limit in lbs & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use;

• 3/16 Inch Thick (6 Feet Long) - 725
• 1/4 Inch Thick (6 Feet Long) - 800
• 3/8 Inch Thick (8 Feet Long) - 875
• 1/2 Inch Thick (8 Feet Long) - 975
• 3/4 Inch Thick (8 Feet Long) - 1000
• 1 Inch Thick (10 Feet Long) - 1000
• 3 Inch Thick (10 Feet Long) - 1000

Working Load Limit (WLL) Values for the BasicLift Magnets are stated at 50% of the actual value. We recommend when lifting sheets over 8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round WLL Values are based on ideal conditions. Consult the factory before specifying these magnets for use on round materials. *Max. sheet lengths are selected due to sag characteristics of specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles and roller cam to properly engage and release the part.
