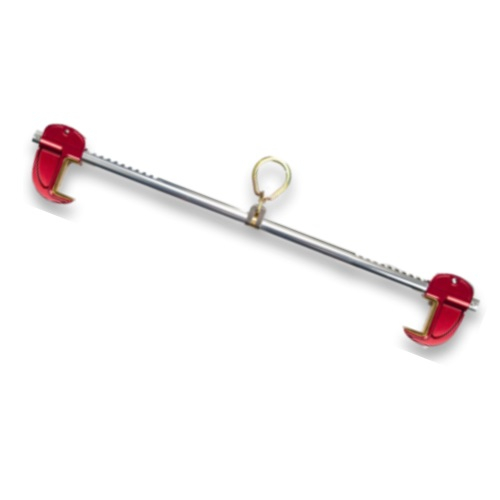

Gemtor SBA-302 Sliding Beam Anchor for 12" - 30" Wide Beams

Overview

This robust and versatile anchorage connector, the Gemtor SBA-302 Sliding Beam Anchor, is specifically designed for secure attachment to I-beams ranging from 12" to 30" wide and up to 2-1/2" thick. Featuring an automatic locking system that adjusts from both ends, this anchor provides fast and secure installation without the need for tools, allowing workers to safely move along a horizontal beam.

The Gemtor SBA-302 Sliding Beam Anchor directly addresses the critical need for a mobile and reliable anchorage point for fall protection when working at height on structural steel beams. Unlike fixed anchors, this sliding beam anchor allows for continuous connection and freedom of movement along the beam, enhancing worker productivity and safety by eliminating the need for repeated anchor point adjustments.

Key benefits include its high-strength aluminum construction, providing a lightweight yet extremely strong and durable anchor point with a minimum breaking strength of 5,000 lbs. Its tool-free installation saves valuable time and effort on the job site. The anchor can be mounted to either the top or bottom horizontal beam flange, offering versatility in application. A unique design feature prevents snaphook gate contact with the beam edge, enhancing safety. Bronze flange inserts allow the anchor to glide smoothly along the top of the beam and offer superior wear resistance compared to nylon pads, ensuring longevity. Despite its strength, the anchor weighs only 7.8 lbs, minimizing added weight to the structure.

This sliding beam anchor is an essential piece of fall protection equipment for ironworkers, construction workers, bridge inspectors, and other professionals working at height on structural steel I-beams. Its ease of installation, mobility, and robust construction provide a safe and efficient anchorage solution, allowing workers to perform their tasks with confidence and security while maintaining continuous fall protection.

Key Features

• Automatic locking system adjusts from both ends for fast and secure attachment to beams.
• Fits beams from 12" to 30" wide and up to 2-1/2" thick, offering wide compatibility.
• Constructed from high-strength aluminum for a lightweight yet extremely strong and durable design.
• Installs in seconds without tools, saving time and increasing efficiency.
• Mounts to top or bottom horizontal beam flange for versatile application.
• Unique design prevents snaphook gate from contacting the edge of the beam, enhancing safety.
• Bronze flange inserts allow smooth gliding along the beam and provide superior wear resistance.
• Provides a 5,000 lbs. Minimum Breaking Strength for reliable fall protection.

Specifications

• Product Name: Gemtor SBA-302 Sliding Beam Anchor for 12" - 30" Wide Beams
• Beam Width Compatibility: 12" - 30"
• Maximum Beam Flange Thickness: 2-1/2"
• Material: High-Strength Aluminum
• Minimum Breaking Strength (MBS): 5,000 lbs.
• Weight: 7.8 lbs.
• Locking Mechanism: Automatic, dual-end adjustment
• Flange Inserts: Bronze

Applications

The Gemtor SBA-302 Sliding Beam Anchor is ideal for ironworkers erecting steel structures, providing continuous fall protection as they move along beams. Construction workers performing welding, bolting, or other tasks on I-beams will benefit from its mobility and ease of use. Bridge inspectors can utilize this anchor for safe and efficient movement along bridge beams during inspections. Maintenance personnel working on elevated steel structures in industrial facilities will find this anchor a reliable solution for fall arrest.

Performance and Characteristics

The high-strength aluminum construction ensures the anchor can withstand significant fall arrest forces, meeting stringent safety standards with a 5,000 lbs. minimum breaking strength. The automatic locking mechanism provides a secure attachment to the beam, minimizing the risk of slippage. The bronze flange inserts facilitate smooth movement along the beam, reducing friction and wear on the anchor. Its lightweight design (7.8 lbs) minimizes the burden on the worker and the structure while maintaining exceptional strength and durability.

Additional Information

Manufactured by Gemtor, a trusted leader in fall protection equipment, the SBA-302 Sliding Beam Anchor is designed for professional use in demanding environments. The unique snaphook gate clearance design adds an extra layer of safety by preventing accidental disengagement. Regular inspection of the anchor and adherence to all relevant safety regulations and manufacturer guidelines are crucial for ensuring safe operation.

Kit Contents

• Gemtor SBA-302 Sliding Beam Anchor for 12" - 30" Wide Beams

Ensure continuous and secure fall protection while working on steel beams. Invest in the Gemtor SBA-302 Sliding Beam Anchor Today!
