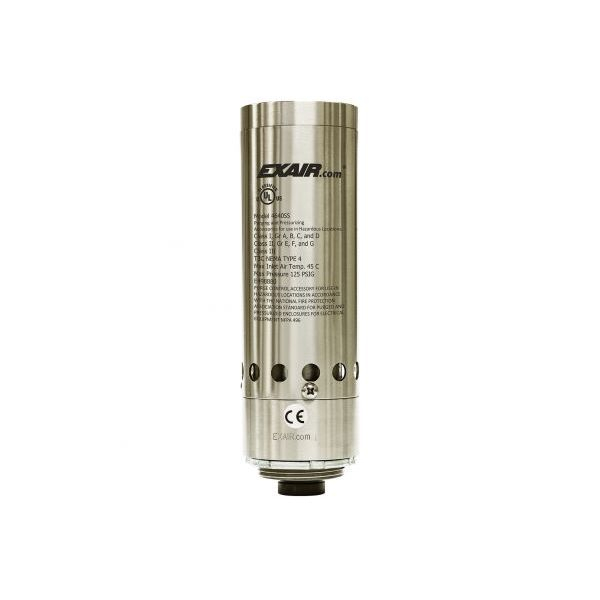

Exair HZ4640SS NEMA 4X 2,800 Btu/hr Stainless Steel Hazardous Location Cabinet Cooler

Hazardous Location NEMA 4X (IP66) Cabinet Coolers are engineered and approved for use upon purged electrical enclosures found within classified areas. The areas approved are Class I DiContinuous Operation Hazardous Location NEMA 4 Cabinet Cooler Systems are recommended when constant cooling and constant positive purge are desirable. NEMA 4 (IP66) Cabinet Coolers are available in many cooling capacities for large and small control panels. Continuous operation Hazardous Location NEMA 4 (IP66) Cabinet Cooler Systems are engineered and UL approved for use upon purged electrical enclosures found within classified areas.v 1, Groups A, B, C and D; Class II Div 1 Groups E, F and G; and Class III. These HazLoc Cabinet Cooler Systems have been tested by UL and meet the stringent UL requirements for these areas. Cabinet Cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. Hazardous Location NEMA 4X (IP66) Cabinet Coolers are constructed of stainless steel for food service and corrosive environments and are available in cooling capacities from 1,000 Btu/Hr. to 5,600 Btu/Hr. They can be installed in minutes through a standard electrical knockout. Hazardous Location NEMA 4X Cabinet Cooler® Systems are available with a thermostat control or as a continuous operation system. NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant, indoor/outdoor service) incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4X enclosure. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All Cabinet Coolers are UL Classified and CE compliant. HazLoc Cabinet Cooler Systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Rated for Div I Hazardous Locations
• UL Classified
• Available in 8 different cooling capacities
• No moving parts - maintenance free
• Thermostat control reduces operating cost
• Large cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
• 5 Year warranty

HazLoc Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, HazLoc Cabinet Cooler Systems are UL Classified for use with classified enclosure purge and pressurization systems and meet all applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
