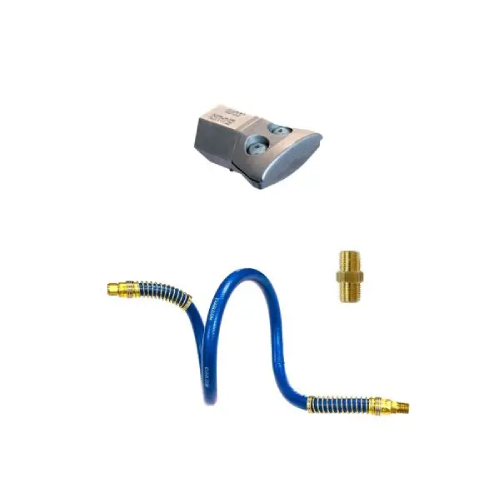

Exair HP1126-9268 1" High Power Flat Super Zinc-Aluminum Air Nozzle with 18" Stay Set Hose

Features:

• The 1" Flat Super Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where repositioning or aiming is required.
• The Stay Set Hose has "memory" and will not creep or bend.
• EXAIR's 1" High Power Flat Super Air Nozzles produce a flat 1" (25 mm) wide airstream with a strong blowing force of 1 pound.
• The adjustable force is more than three times that of ordinary air nozzles.
• It uses EXAIR's patented technology to maximize entrained airflow while reducing noise levels.
• Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
• 1" High Power Flat Super Air Nozzle with 18" SSH

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

• Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle.
• The flow is directed to a precise, slotted orifice.
• As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line.
• This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle.
• Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1.
• The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.
