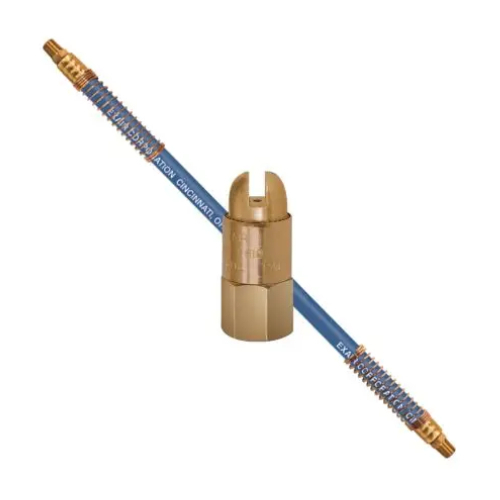

Exair HP1002-9206 1/4 NPT High Power Brass Air Nozzle with 6" Stay Set Hose

Features:

• This High Power Safety Air Nozzle includes EXAIR's Flexible Stay Set Hose for applications where repositioning or aiming is required.
• It provides strong blowing force for applications requiring high thrust and velocity.
• It uses more compressed air than other air nozzles but is low when compared to typical blowoffs delivering the same force.
• Brass - general purpose applications. Maximum temperature 400°F (204°C).
• High Power Safety Air Nozzle with 6" SSH

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

How It Work:

• Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle.
• The flow is directed to a precise, slotted orifice.
• As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line.
• This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle.
• Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1.
• The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.
