Exair HL5030SS HollowStream Cone Nozzle, 3.0 GPM, 1/2 NPT

Features:

• EXAIR's 1/2 NPT HollowStream Cone Nozzle, with a circular ring spray pattern, is among the most common types of spray nozzles.
• The hollow cone spray nozzle is used to solve cooling, cleaning, washing, rinsing, and dust suppression applications throughout industry, using less liquid than its full cone counterpart.
• Its vaneless design creates wide open internal features that resist clogging and allows it to work well with liquids containing particulates.

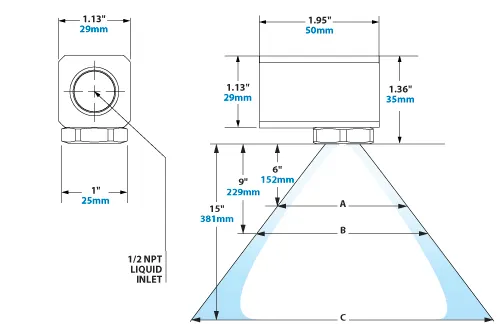

• It produces a uniform distribution in a hollow cone ring pattern.

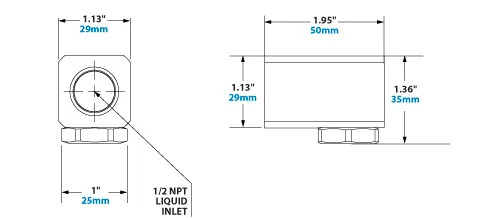

• Its right-angle design is compact and operates at liquid pressures up to 250 PSI.
• It is commonly used with liquids such as water, rinse aids, or detergents, but is also effective with chemicals, pesticides, and herbicides.
• Adjustment of the liquid flow rate is achieved by varying liquid pressure.
• Type 303 Stainless Steel - the EXAIR's Liquid Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Cooling, coating
• Quenching
• Dust suppression
• Washing, rinsing
• Foam breaking
• Slurry spraying
• Sanitizing, degreasing
• Lubricating

Advantages:

• Lower liquid flow rates compared to full cone counterparts
• Increase surface area coverage
• Increase liquid volume on your target
• All stainless steel construction
• Compact footprint, versatile

How It Work:

• With these nozzles, the atomizing fluid is supplied into the body of the nozzle creating a swirling action within the vortex chamber.
• Depending on the geometry of the liquid cap these nozzles will produce a full cone or hollow cone liquid spray pattern as it exits the orifice at a controlled spray angle.
