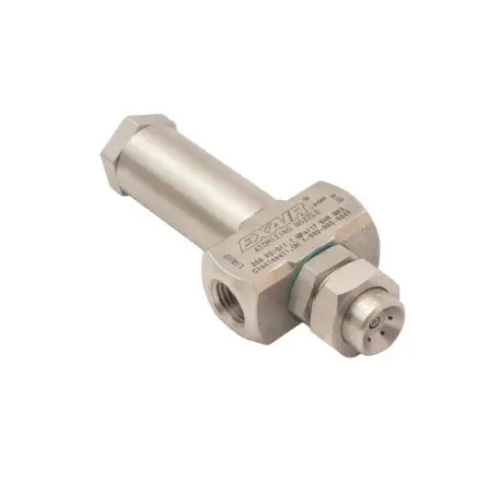

Exair ER2050SS No Drip External Mix Round Atomizing Nozzle, 60.0 GPH, 1/4 FNPT

Features:

• 1/4 FNPT no drip external mix round pattern nozzle features the ability to preserve precious liquids and protect product finishes from drips.
• It is great where a high volume of liquid is needed over a specific or general area, but not in a flat pattern.
• Applications include spot treatment of parts, covering irregularly shaped objects, or coating a container of parts with a heavy application.
• It is also an excellent choice for controlling heavy dust and particulates.
• Because it is an external mix design, airflow and liquid flow can be controlled independently.
• It is made from Type 303 stainless steel for corrosion resistance.
• Intended for pressure-fed applications with independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
