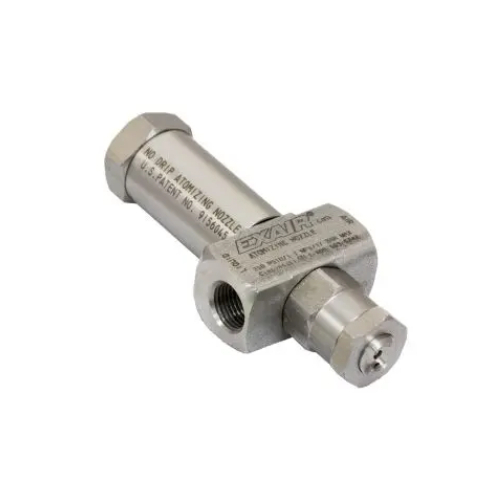

Exair EF9040SS No Drip External Mix Narrow Angle Flat Fan Atomizing Nozzle, 14.42 GPH, 1/8 FNPT

Features:

• 1/8 FNPT no drip external mix narrow angle flat fan pattern nozzle features the ability to positively stop liquid flow when the compressed air is shut off, helping to conserve expensive liquids and protect the product finish from drips.
• It is great where a high volume of liquid is needed over a concentrated area.
• Because it is an external mix design, airflow and liquid flow can be controlled independently.
• The external mix narrow angle flat fan pattern nozzle is the best choice when thicker liquids for a heavy coating are needed over a narrow band, such as a paint line.
• It is made from Type 303 stainless steel for corrosion resistance.
• Intended for pressure-fed applications with independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
