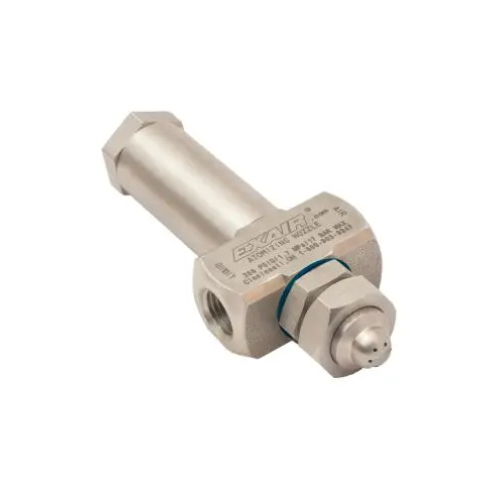

Exair AW2030SS No Drip Internal Mix Wide Angle Round Atomizing Nozzle, 15.0 GPH, 1/4 FNPT

Features:

• EXAIR's 1/4 FNPT no drip internal mix wide angle round pattern atomizing nozzle positively stops liquid flow when the compressed air is shut off, helping to conserve expensive liquids and protect the product finish from drips.
• It is great for covering a broad area and can be adjusted for a light mist or a heavy soaking spray.
• It is popular for dust mitigation, humidification, and cooling of products, people, or livestock in a broad area.
• This nozzle is also perfect for applying a coating to parts packed in a large container, for example, misting a container of stamped steel parts with oil to prevent oxidation during shipment.
• Intended for pressure-fed applications not requiring independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
