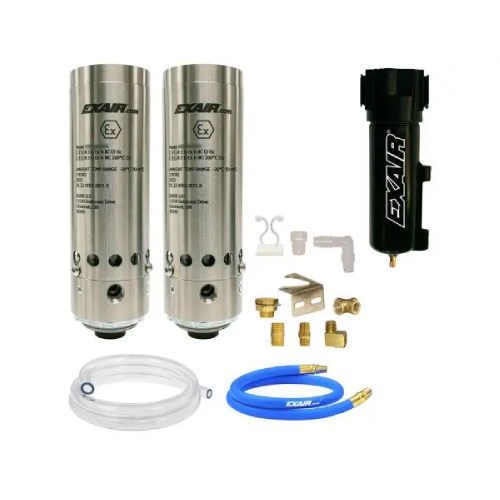

Exair ATEX4760SS ATEX Cabinet Cooler, Continuous Operation, Stainless Steel, 4000 Btu / hr

Features:

• Stainless Steel continuous operation ATEX Cabinet Cooler System is engineered and approved for use on purged electrical enclosures found within classified areas.
• This ATEX Cabinet Cooler System has been tested by UL and meets the stringent ATEX requirements for these zones.
• The Cabinet Cooler system is a low-cost and reliable way to cool purged electric control panels found in these environments.
• The approved areas are Zones 2 and 22.
• It can be installed in minutes through a standard electrical knockout.
• The Continuous Operation ATEX Cabinet Cooler System is recommended when constant cooling and constant positive purge are desirable.
• The ATEX Cabinet Cooler incorporates a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4X enclosure (dust-tight, oil-tight, splash resistant, indoor/outdoor service, corrosion resistant).
• The system includes a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct air for circulation or onto hot spots.
• The Cabinet Cooler is CE compliant.
• EXAIR's ATEX Cabinet Cooler System is not a purged and pressurized control system and should not be relied upon nor used in place of a purged and pressurized controller.
• It is meant for use in conjunction with a purged and pressurized control system.

Applications:

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC / CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Aluminum ATEX Cabinet Cooler Advantages:

• Rated for Zone 2 and 22
• Low cost, compact
• Quiet
• Install in minutes
• Maintain NEMA 4 integrity (IP66)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Stop dirt contamination
• Provide washdown protection

How It Work:

• Compressed air enters the vortex tube powered Cabinet Cooler and is converted into two streams, one hot and one cold.
• Hot air from the vortex tube is muffled and exhausted through the vortex tube exhaust.
• The cold air is discharged into the control cabinet through the cold air distribution kit.
• The displaced hot air in the cabinet rises and exhausts to atmosphere through the cabinet air exhaust at a slight positive pressure.
• Thus, the control cabinet is both cooled and purged with cool, clean air.
• Outside air is never allowed to enter the control panel.
