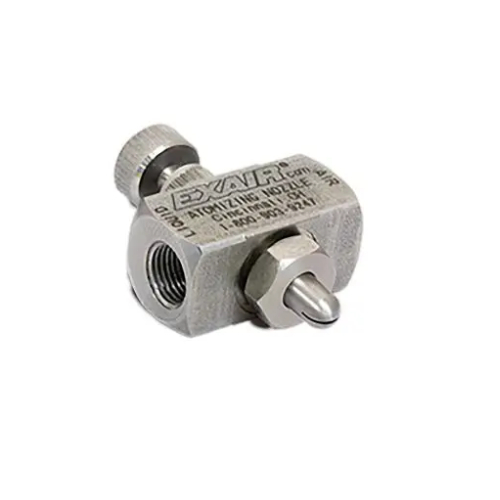

Exair AF8040SS Internal Mix Flat Fan Atomizing Nozzle, 28.00 GPH, 1/8 FNPT

Features:

• 1/8 FNPT internal mix flat fan pattern atomizing nozzle is designed with efficiency in mind.
• Especially good for vertical or horizontal assembly lines, its broad, thin pattern makes efficient use of expensive liquids.
• Its output can be adjusted to produce either a very light film or a heavy coat of whatever liquid you are working with.
• Whether it is applying paint to hanging sheet metal or using a water mist to cool a laminate web, the flat fan atomizing nozzle covers a wide, flat area and is ideal for products moving on a conveyor.
• It is intended for pressure-fed applications that do not require independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
