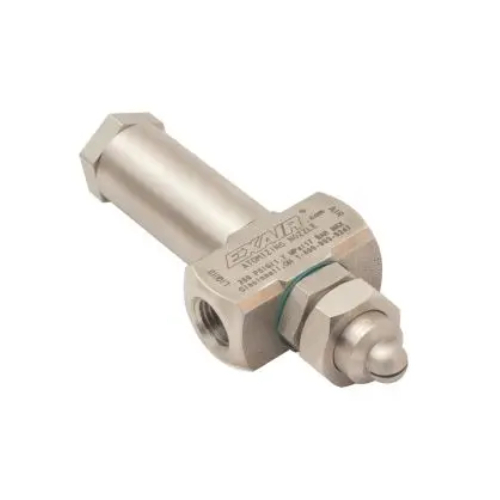

Exair AF2050SS No Drip Internal Mix Flat Fan Atomizing Nozzle, 42.0 GPH, 1/4 FNPT

Features:

• EXAIR's 1/4 FNPT no drip internal mix flat fan pattern atomizing nozzle features the ability to positively stop liquid flow when the compressed air is shut off, helping to conserve expensive liquids and protect the product finish from drips.
• It is designed with efficiency in mind.
• Especially good for vertical or horizontal assembly lines, its broad, thin pattern makes efficient use of expensive liquids.
• Its output can be adjusted to produce either a very light film or a heavy coat of whatever liquid you are working with.
• Whether it is applying paint to hanging sheet metal or using a water mist to cool a laminate web, the flat fan atomizing nozzle covers a wide, flat area, ideal for products moving on a conveyor.
• It is engineered from Type 303 stainless steel for corrosion resistance. Intended for pressure-fed applications not requiring independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
