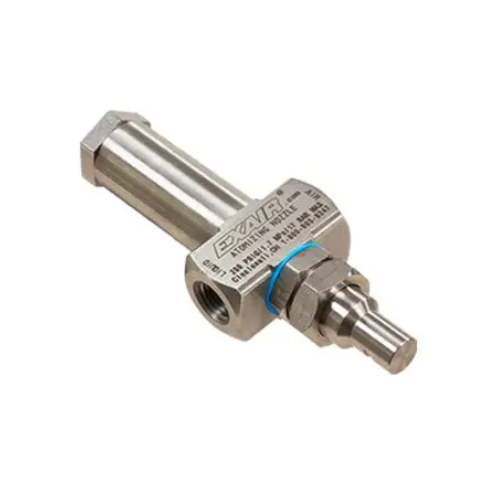

Exair AD2010SS No Drip Internal Mix Deflected Flat Fan Atomizing Nozzle, 6.9 GPH, 1/4 FNPT

Features:

• EXAIR's 1/4 FNPT No Drip internal mix deflected flat fan pattern nozzle conserves expensive liquids and protects product finishes from drips by shutting off the liquid flow when no air pressure is present
• It is designed for applications where space is at a premium.
• The flat fan pattern sprays at a right angle to the nozzle's orientation, allowing spray to be placed precisely where it is needed in close quarters.
• The nozzle is ideal for coating the inside of enclosures and ductwork.
• It is made from Type 303 stainless steel for corrosion resistance.
• It is intended for pressure-fed applications that do not require independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
