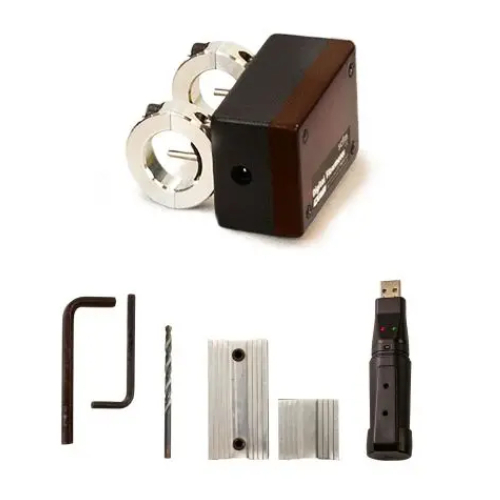

Exair 9091-DAT 1-120 SCFM Digital Flowmeter with Data Logger with Drill Guide Kit, 3/4"
- Part #:9091-DAT
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Features:
- EXAIR's Digital Flowmeter, with Data Logger included, is the easy way to monitor compressed air consumption and waste!
- The digital display shows the exact amount of compressed air being used and the Data Logger records the air use history, making it easy to identify costly leaks or inefficient air products.
- No cutting, welding, adjustments or calibration are ever required. It is designed for permanent or temporary mounting to a compressed air pipe.
- If the unit needs to be removed blocking rings are available for most models.
Advantages:
- Easy to install
- No moving parts
- Sensitive at low flows
- No calibration or setup required
- Includes all components for installation
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Accuracy | 5% of reading plus 1% of range for flows from 10% to 100% of indicated range at air temperatures between 20° to 120°F. |
| Input Power | 250 mA at 24 VDC |
| Output Resistance | 600 Ohms maximum |
| Wetted Materials | Stainless steel, gold, thermal epoxy and Viton |
| Ring Material | Aluminum |
| Display | Four-digit LED display |
| Response Time | One second to 63% of change in value at flows above 30% of range. |
| Pressure Range | N/A |
| Compliance | CE and RoHS |
| Note | For use with compressed air and nitrogen only. |

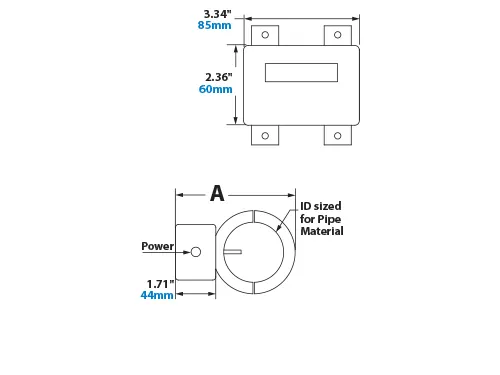

| Dimensions and Flow Range - Small Digital Flowmeter | |
| Pipe Size | 3/4" |
| A | 3.49 in / 89 mm |
| Flow Range | 1-150 SCFM (1.7-255 m3/hr) |
