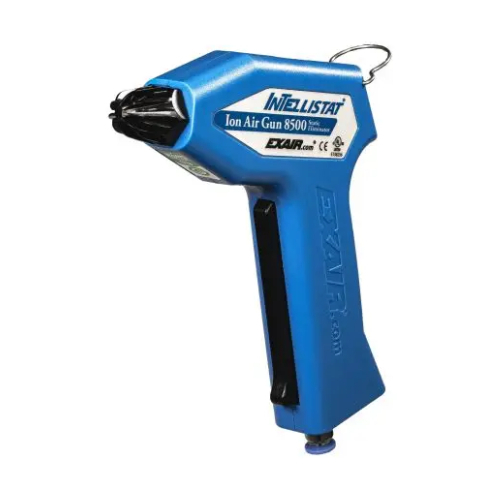

Exair 8500 Intellistat Ion Air Gun

Features:

• The patented Intellistat Ion Air Gun produces ionized compressed air to neutralize static and remove troublesome particulates during clean processes, test procedures and sensitive assembly work.
• With a +/-30 volt balance the Intellistat was designed to use minimal compressed air while delivering precise blowoff and exceptional static decay rates capable of reducing 1000 volts to less than 100 in under one second.
• A low voltage transformer converting 120V or 240V to 24V assures electrical safety, while EXAIR's engineered air nozzle meet OSHA compressed air standards.
• Coming equipped with a short-throw, fast acting and effortless trigger, the Intellistat's lightweight frame (less than 200 grams) allows extended use without fatigue.
• It is a dependable and low maintenance solution made of durable dissipative polycarbonate for applications requiring non-conductivity such as circuit board or electronic manufacturing.
• The ionized compressed air and design are ideal for sterile environments such as laboratories, clean rooms or for scientific testing facilities.

Patent Numbers:US: Pat. D903817EU: EU Regd. Des. No. 00770318-0001Mexico and Canada: EXAIR Corporation, Mexico No. 60723, Canada No. 194141

Applications:

• Precision parts assembly
• Maintain charge neutrality in laboratory processes
• Remove particles from parts and surfaces in clean environments
• Printed circuit board manufacturing
• Maintain cleanliness during electronics manufacturing and assembly
• Eliminate electrostatic discharge
• Remove debris from medical products
• Clean glass containers, slides and lenses

Advantages:

• Rapid static decay
• Low voltage operation
• Quick change emitter point
• Comfortable, short throw trigger for ionization
• Lightweight for prolonged use
• OSHA safe air outlet
• LED indicators for proper and improper functionality
• Rated Class 5 for clean rooms and controlled environments per ISO 14644-1

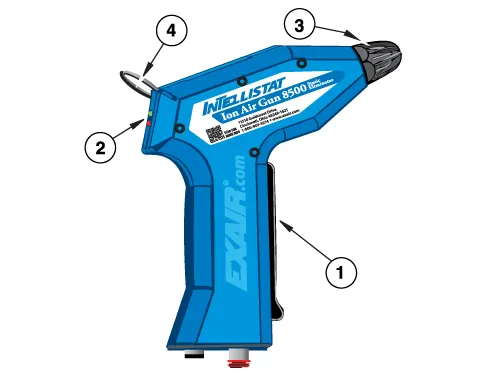

How it work:

• Pressing the full finger, short throw trigger (1) activates the static eliminating ions and airflow.
• Proper or improper functionality is indicated by a green or red LED (2).
• The non-marring nozzle (3) provides quiet performance and OSHA compliance.
• A hanger hook (4) is included to keep the Intellistat conveniently stored.
