Description
Features:

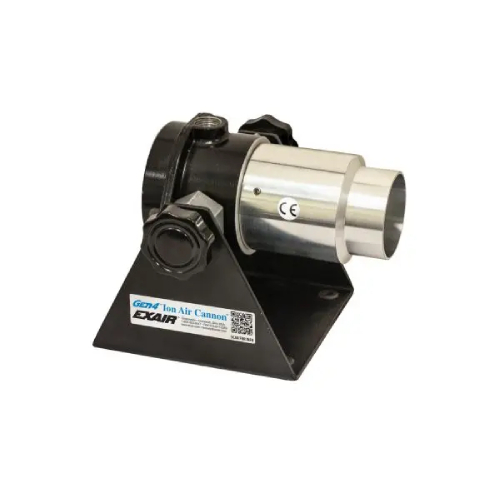

- EXAIR's Gen4 Ion Air Cannon neutralizes static electricity and cleans at distances up to 15 feet (4.6 m) with no moving parts.
- It is ideal for those hard to reach spaces or confined areas that require a concentrated flow of static eliminating ions.
Ion Air Cannon - includes:
- Super Air Amplifier
- Emitter
- Stand
- 5' (1.52 m) length of armored
- Electromagnetically shielded cable
Applications:
- Bag opening - form and fill
- Clean and neutralize parts
- Neutralizing shrink wrap
- Cleaning molded parts
- Removing static on assemblies
- Neutralizing slitting operations
- Package cleaning
- Container neutralization
Advantages:
- Low air consumption
- Rapid static decay
- Quiet
- Effective up to 15 feet (4.6 m)
- Shockless, non-radioactive
- Compact, rugged, easy to install
- Intake can be ducted
- No moving parts - low maintenance
- Variable force and flow

How it work:
- The Gen4 Ion Air Cannon incorporates a Super Air Amplifier (patent #5402938) and ionizing collar, energized by a power supply.
- A small amount of compressed air is injected into the barrel of the cannon (1) inducing a high volume flow of surrounding air to flow through it (2).
- A replaceable emitter point at the discharge end of the cannon (3) ionizes the entire airstream.
- The result is a high volume, conical flow of ionized air (4) capable of eliminating static and cleaning at distances up to 15 feet (4.6 m).
- Because more than 90% of the ionized air is induced, the Gen4 Ion Air Cannon produces maximum airflow at minimum air consumption.

⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Pressure Supply | 20 PSIG |
| BAR | 1.4 |
| Air Consumption* | |
| SCFM | 5.7 |
| SLPM | 161 |
| Sound Level | 58 dBA |
| Dissipates 5kV* | 0.75 Seconds |
| Pressure Supply | 40 PSIG |
| BAR | 2.8 |
| Air Consumption* | |
| SCFM | 9 |
| SLPM | 255 |
| Sound Level | 64 dBA |
| Dissipates 5kV* | 0.6 Seconds |
| Pressure Supply | 60 PSIG |
| BAR | 4.1 |
| Air Consumption* | |
| SCFM | 12.2 |
| SLPM | 345 |
| Sound Level | 70 dBA |
| Dissipates 5kV* | 0.5 Seconds |
| Pressure Supply | 80 PSIG |
| BAR | 5.5 |
| Air Consumption* | |
| SCFM | 15.5 |
| SLPM | 439 |
| Sound Level | 72 dBA |
| Dissipates 5kV* | 0.43 Seconds |
| Pressure Supply | 100 PSIG |
| BAR | 6.9 |
| Air Consumption* | |
| SCFM | 18.7 |
| SLPM | 529 |
| Sound Level | 74 dBA |
| Dissipates 5kV* | 0.37 Seconds |
| * 12" (305 mm) from target | |
| Compressed Air Inlet | 3/8 NPT intlet |
| Electrical Requirements | For use with 5 kVrms, 5 milliamperes (max) power supply |
| Electrical Hazard | Shockless (less than 40 microamperes short circuited). Do not use near flammable materials or gases |
| Metal Parts | Aluminum |
| Plastic Parts | UL Rated 94 HB |
| Emitters | Stainless Steel |
| Maximum Ambient Temperature | 165°F (74°C) |
