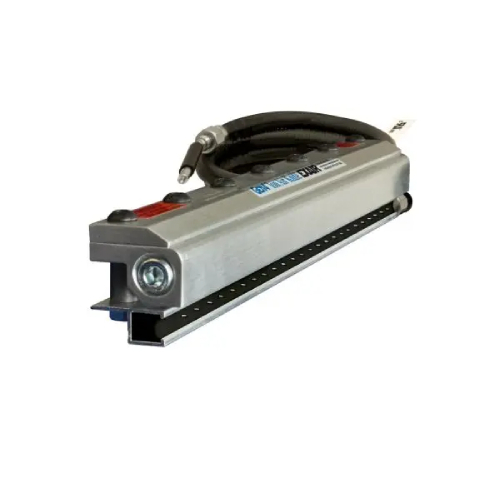

Exair 8109 Gen4 9" Standard Ion Air Knife

Features:

• EXAIR's Gen4 Standard Ion Air Knife uses Standard Air Knife (30:1 air amplification) to deliver a sheet of ionized air to a charged surface.
• The Gen4 Standard Ion Air Knife removes static electricity from plastics, webs, sheet stock and other product surfaces where tearing, jamming or hazardous shocks are a problem.
• Production speeds, product quality, and surface cleanliness can improve dramatically.

Gen4 Standard Ion Air Knife - includes:

• Standard Air Knife
• Gen4 Ionizing Bar assembly
• Does not include power supply.

Advantages:

• 30% improved performance
• Rugged metal armored and electromagnetically shielded cable
• Integrated ground eliminates additional ground connection
• Durable stainless steel connections to Power Supply
• Reduced air consumption
• 30:1 air amplification
• Low noise level
• Effective up to 20 feet (6.1m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Unlimited system lengths
• Low maintenance
• Variable force and flow

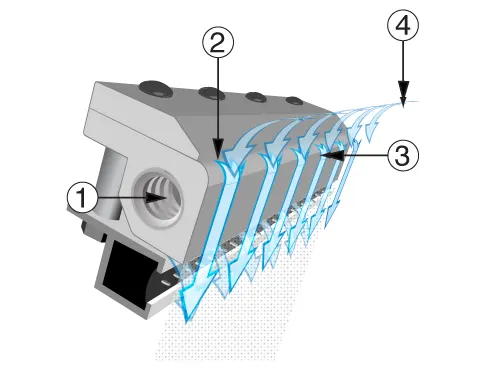

How it Work:

• Compressed air flows through the inlet (1) into a plenum chamber.
• It is then throttled through a thin nozzle (2) extending the length of the Standard Ion Air Knife.
• This primary airstream adheres to the Coanda profile (3), which turns it 90° and directs the flow down the face of the unit.
• The primary stream immediately beings to entrain surrounding air (4), for an amplification ratio of 30:1 at 6" (15xmm) away.
• An electrically powered ionizing bar fills the curtain of air with positive and negative charges.
• The airstream delivers these static eliminating ions to the product surface where it is instantly neutralized and cleaned of dust and other particulates.
