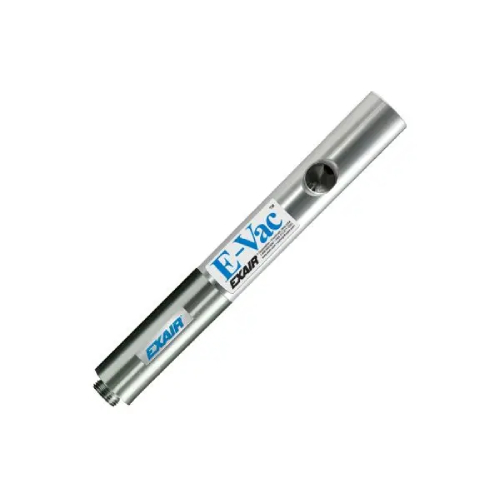

Exair 800002M E-Vac Low Vacuum Generator with Straight Through Muffler (Porous), 2.1 SCFM

Features:

• EXAIR's In-Line E-Vac with muffler includes a sound-reducing muffler designed to significantly lower noise without affecting the E-Vac's performance.
• The In-Line E-Vac is engineered to produce instantaneous vacuum at the point of use.
• This single-stage, cylindrical unit is compact and easy to mount.
• It can be held in place by threading it directly onto a compressed air line or by using a mounting clip.
• A low vacuum unit is typically used for porous materials such as cardboard, textiles, or delicate items.
• The Straight Through Muffler is recommended where particulates are present, as it will not accumulate debris that can erode performance.
• The Straight Through Muffler offers the best sound level reduction.

Applications:

• Pick and place of parts and equipment
• Bag / package opening
• Label placement
• Vacuum forming
• Mold evacuation
• Vacuum filling
• Leak testing
• Evacuate containers
• Clamping and chucking
• Paper alignment and feed in printing equipment
• Vacuum packaging
• Surface mounting
• Vacuum press for wood veneers and laminates
• Carton forming
• Robotic tooling
• Vacuum liquids for testing

Advantages:

• Compact, portable
• Single stage design eliminates fluctuations in vacuum
• Quiet
• Instantaneous vacuum
• Easy to mount at point of use
• Lightweight, rugged
• No moving parts - no maintenance
• Fast response - increases cycle time
• Durable 6061 aluminum construction
• Safe operation - no electricity

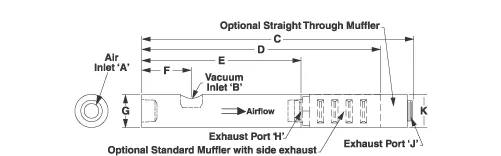

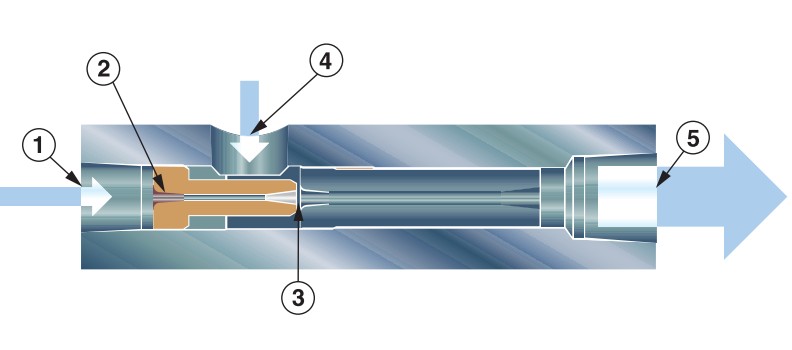

How it work:

• Compressed air flows through the inlet (1), then through a single directed nozzle (2).
• As the airstream exhausts, it expands and increases in velocity prior to passing through the venturi (3).
• A vacuum inlet tangential to the primary airflow (4) is located at the suction point between the orifice and the venturi.
• The airflow that is drawn through the vacuum inlet mixes with the primary airstream, then exhausts on the opposite end (5).
