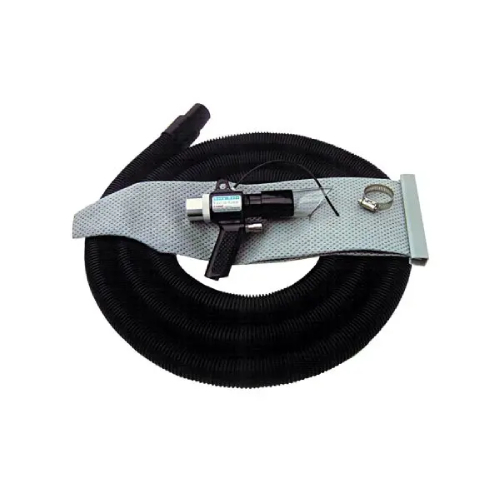

Exair 6394 Deep Hole Vac-u-Gun All Purpose System

Features:

• EXAIR's Model 6394 Deep Hole Vac-u-Gun All Purpose System has all the parts you need to use your Vac-u-Gun as a portable, lightweight, easy-to-use, small job vacuum tool.
• A low cost solution to quickly remove chips and contaminants from grooves, containers and drilled holes.
• The Deep Hole Vac-u-Gun is ideal for extracting chips / contaminants from grooves, containers and drilled holes where blow guns could create potentially hazardous flying debris.
• Simply position the Deep Hole Vac-u-Gun over the hole and press the trigger.
• A small blow tube dislodges and lifts the chips while the large suction tube vacuums them away.
• The operator is protected from flying debris since all contaminants are contained within the clear suction tube. It is perfect for cleaning holes up to 1-1/4" (32 mm) diameter at a depth of 18" (457 mm).

Included:

• Deep Hole Vac-u-Gun
• Reusable bag
• 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D.

Applications:

• Holes in fixtures
• Drilled plastics
• T-slots â€" groove cleaning
• Coolant evacuation from parts
• Woodworking
• Container cleaning
• Tapped holes
• Cupped surfaces
• Cavity evacuation
• Bottle cleaning
• Punch press tables

Advantages

• Low cost
• No moving parts - maintenance free
• Durable - die cast construction
• Eliminates shock hazard - no electricity
• Meets OSHA pressure and chip guard requirements
• Safe operation - no flying chips
• Lightweight and portable
• Quiet
• Low air consumption

How it Work:

• Compressed air, normally 80-100 PSlG (5.5 - 6.9 BAR), flows through the inlet into an annular plenum chamber.
• Airflow is injected into the throat of the gun through directed nozzles.
• These jets of air create a vacuum at the intake which draws material in and accelerates it through the unit.
• The chips, debris or other particulates can then be exhausted into a filter bag or hose attached to the Vac-u-Gun System.
