Exair 6241 1-1/4" Aluminum Adjustable Air Amplifier Kit

Features:

• The Adjustable Air Amplifier pulls in a large volume of surrounding air to produce a high-volume, high-velocity outlet flow.
• Utilizing the Coanda effect, a basic principle of fluidics, the Air Amplifier becomes a simple, low-cost way to circulate air, move smoke, fumes, and light materials.
• Force and flow for the Adjustable Air Amplifier are changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap.
• When the desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting.
• Material: Aluminum

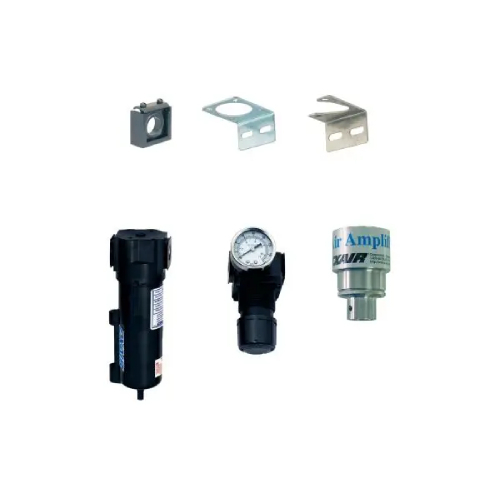

• The Adjustable Air Amplifier Kit includes everything needed to simplify installation.

Included:

• Adjustable Air Amplifier,
• Shim set a filter separator
• Pressure regulator (with coupler)

Applications:

• Vent welding smoke
• Cool hot parts
• Dry wet parts
• Clean machined parts
• Distribute heat in ovens/molds
• Ventilate confined areas
• Dust collection
• Exhaust tank fumes

Advantages

• Compared to Fans:
  • Compact, lightweight, portable
  • No electricity
  • No moving parts - no maintenance
  • Ends are easily ducted
  • Instant on / off
  • Variable force and flow
  • No RF interference
• Compared to Venturies and Ejectors:
  • More air with lower compressed air consumption
  • Higher flow amplification
  • No internal obstructions
  • Meets OSHA pressure and noise requirements
  • Quiet

How it Work:

• Compressed air flows through the air inlet (1) into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity.
• This primary airstream adheres to the Coanda profile (4), which directs it toward the outlet.
• A low pressure area is created at the center (5), inducing a high volume flow of surrounding air into the primary airstream.
• The combined flow of primary and surrounding air exhausts from the Air Amplifier in a high volume, high velocity flow.
