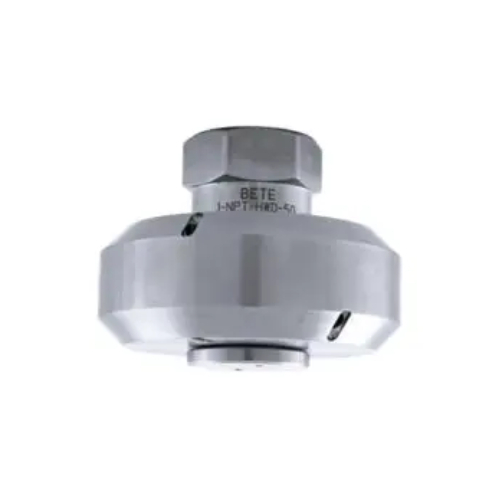

Exair 6211162 HydroWhirl Disc, 360 deg Spray Angle, 50 GPM
- Part #:6211162
- Model #:HydroWhirl
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Features:
- BETE's HWD spray nozzle is a powerful, fully submersible rotating tank cleaner designed for cleaning small to medium-sized tanks.
- This rotary head is fluid-driven and self-flushing for minimal maintenance.
- Its 360° spray pattern produces high-impact washing at 50 GPM with consistent repetition to clean the tank effectively and efficiently.
- It is made with FDA-compliant 316LSS, a PTFE slide bearing, and a 1 FNPT connection.
- 316L Stainless Steel with PTFE Slide-Bearing
Applications:
- Cleans small to medium-sized tanks
Advantages:
- Fluid-driven, self-flushing for minimal maintenance
- Fully submersible, clog-resistant
- Powerful spray impact
- Made from FDA-compliant, 316L SS
- Hydrostatic wear-free PTFE slide bearing for extended service life

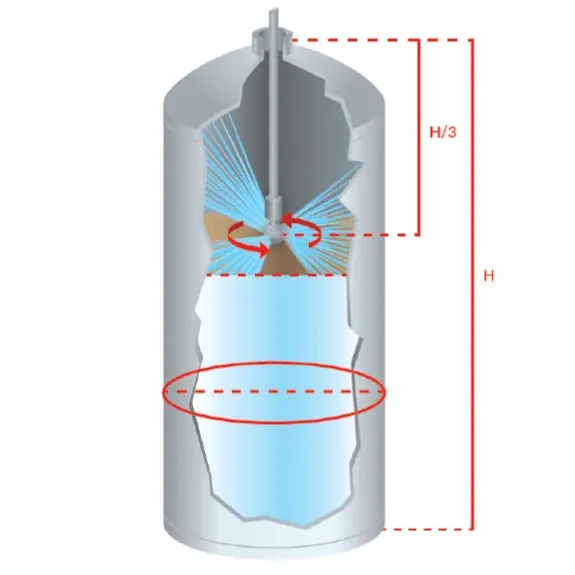

How it Work:
- (H/3) Nozzle =1/3 Overall Tank Height (H).
- Ideal nozzle placement is approximately 1/3 the height from the top of the tank.
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Spray Angle | 360° |
| Inlet Connection | 1 FNPT |

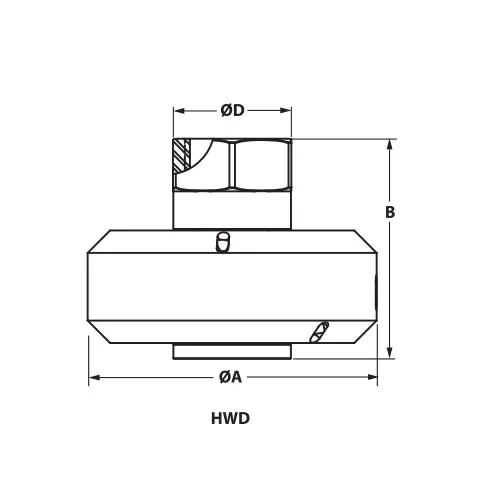

| A | 3.88" |
| B | 2.94" |
| D | 1.56" |
| Weight | 41 oz |
| Max Free Passage | 0.13" |
| Coverage Dia at 40psi | 11' |
| Performance (imperial units) | |
| Fluid Pressure (PSI) | Flow Rate (GPM) |
| 10 PSI | 25.3 |
| 20 PSI | 35.5 |
| 30 PSI | 43.4 |
| 40 PSI | 50.0 |
| 50 PSI | 55.8 |
| 60 PSI | 61.1 |
| Dimensions (metric) | |
| Spray Angle | 360° |
| Inlet Connection | 1 FNPT |
| A | 98.4 mm |
| B | 74.8 mm |
| D | 40.6 mm |
| Weight | 1162 g |
| Max Free Passage | 3.30 mm |
| Coverage Dia at 2 BAR | 3 m |
| Performance (metric) | |
| Fluid Pressure (BAR) | Flow Rate (LPM) |
| 0.7 | 96.3 |
| 1 | 115 |
| 2 | 162 |
| 3 | 198 |
| 4 | 227 |
