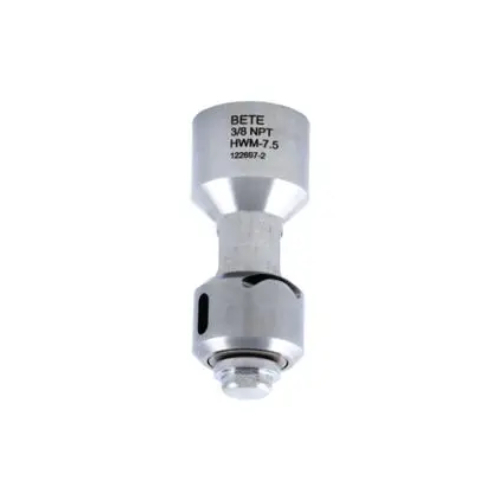

Exair 6208384 HydroWhirl Mini, 360 deg Spray Angle, 7.5 GPM
- Part #:6208384
- Model #:HydroWhirl
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Features:
- BETE's HydroWhirl Mini (HWM) is a fluid-driven, self-flushing compact rotary tank cleaning nozzle made from FDA-compliant 316L Stainless Steel with PEEK slide bearings for greater longevity and minimal maintenance.
- Suitable for small tanks up to 6.5 ft (2 m) in diameter, this compact nozzle features a 3/8 FNPT connection and creates vigorous spray action with complete 360° spray coverage at 7.5 GPM.
- 316L Stainless Steel with PEEK slide-bearing
Applications:
- Clean small tanks and equipment up to 6 ft diameter
Advantages:
- Made from FDA-compliant, 316L SS with compact design for hygienic equipment cleaning, drum, barrel and tote washing
- Self-flushing for minimal maintenance
- PEEK slide-bearing for longer-lasting service

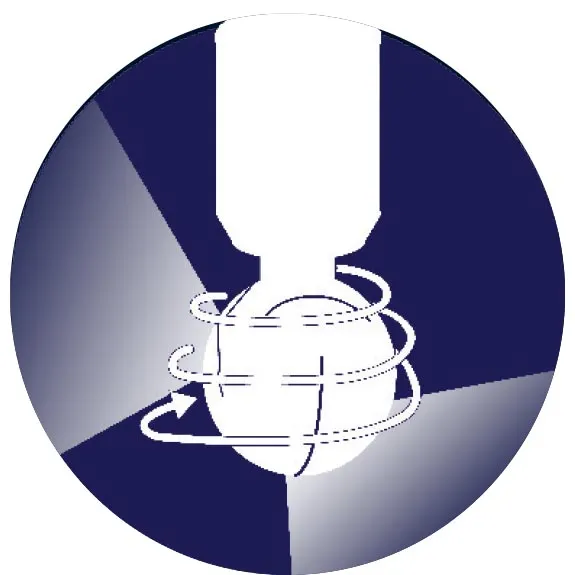

How it Work:
- Rotating tank cleaning nozzles generate rotation using the force of the cleaning fluid.
- They provide more mechanical force than traditional static spray balls, resulting in faster, more effective cleaning.
- This leads to significant resource savings and increased production.
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A

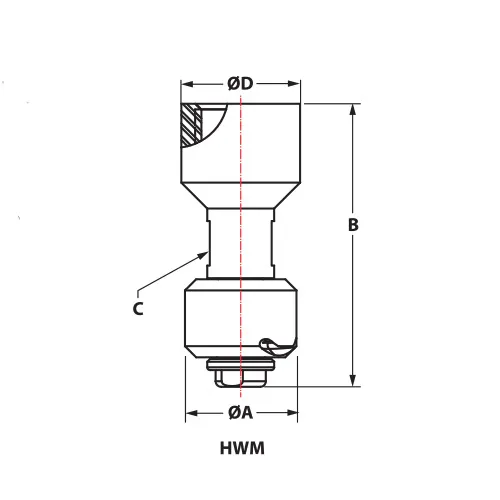

Technical details
| Spray Angle | 360° |
| Inlet Connection | 3/8 FNPT |
| A | 0.81" |
| B | 2.00" |
| C | 0.44" |
| D | 0.70" |
| Max Free Passage | 0.06" |
| Coverage Dia at 40psi | 6" |
| Weight | 2.60 oz |
| Performance (imperial units) | |
| Fluid Pressure (PSI) | Flow Rate (GPM) |
| 10 | 3.64 |
| 20 | 5.22 |
| 30 | 6.45 |
| 40 | 7.50 |
| 50 | 8.43 |
| 60 | 9.27 |
| Dimensions (metric) | |
| Spray Angle | 360° |
| Inlet Connection | 3/8 FNPT |
| A | 20.3 mm |
| B | 50.8 mm |
| C | 12.7 mm |
| D | 17.8 mm |
| Max Free Passage | 1.52 mm |
| Coverage Dia at 2 BAR | 2 m |
| Weight | 73.7 g |
| Performance (metric) | |
| Fluid Pressure (BAR) | Flow Rate (LPM) |
| 0.7 | 13.9 |
| 1 | 16.7 |
| 2 | 24.0 |
| 3 | 29.7 |
| 4 | 34.5 |
