Exair 6192 Vac-u-Gun Collection System

Features:

• EXAIR's Model 6192 Vac-u-Gun Collection System is a portable, lightweight, easy-to-use, small job vacuum tool that can also be used as a transfer tool or blow gun.
• A low cost solution to a wide variety of industrial housekeeping problems.
• The Vac-u-Gun has durable die cast construction with no moving parts to wear out.
• Model 6192 Collection System is designed to make your Vac-u-Gun a lightweight, easy-to-use vacuum tool.

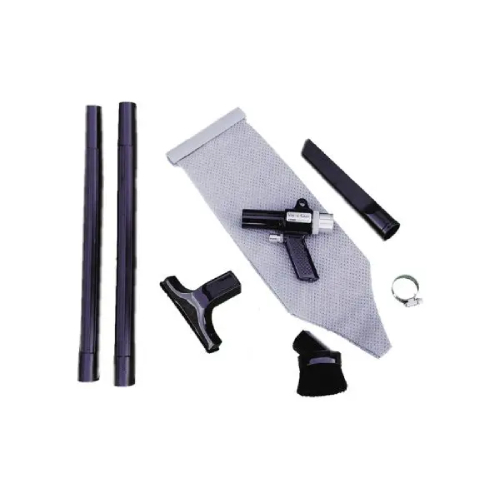

Included:

• Vac-u-Gun
• Reusable bag
• Brush
• Crevice tool
• Skimmer tool
• Two extension wands

Applications:

• Vacuum shavings
• Vacuum absorbent
• Vacuum sawdust
• Vacuum spills
• Transfer small parts
• Transfer pellets
• Transfer trim
• Blow chips
• Blow water
• Blow coolant
• Blow scrap

Advantages:

• Low cost
• No moving parts - maintenance free
• Durable - die cast construction
• Switch from vacuum to blow mode in seconds
• Safe - no electricity
• Meets OSHA pressure requirements
• Vacuum or blowoff
• Lightweight and portable
• Versatile

How it Work:

• Compressed air, normally 80-100 PSlG (5.5 - 6.9 BAR), flows through the inlet into an annular plenum chamber.
• Airflow is injected into the throat of the gun through directed nozzles.
• These jets of air create a vacuum at the intake which draws material in and accelerates it through the unit.
• The chips, debris or other particulates can then be exhausted into a filter bag or hose attached to the Vac-u-Gun System.
