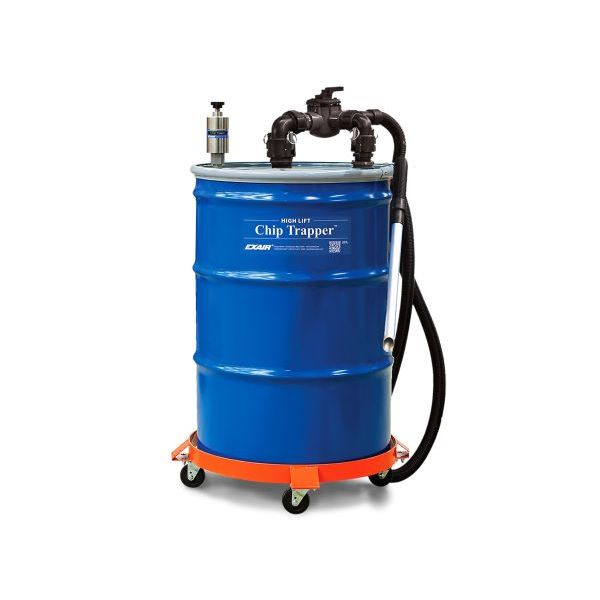

Exair 6190 55 Gallon High Lift Chip Trapper Vacuum System

High Lift Chip Trapper offers a fast, easy way to clean chips, swarf and shavings out of used coolants and other liquids that are in wells, pits, or cisterns. Using the High Lift Chip Trapper, you can pump farther, pump higher and pump thicker liquids. The Chip Trapper vacuums the coolant or liquid that is filled with debris and traps all the solids in a reusable filter bag. Only the liquid pumps back out. It is ideal for use on machines with sumps, parts washers, tanks and storage containers of contaminated liquids.

Applications

• Below grade coolant sumps
• Deep wells
• Underground storage tanks
• Pits
• Drains
• Deep hole broaching
• Bulk storage tanks
• Cisterns

Advantages

• Removes unwanted solids from liquid
• Recycles coolants
• No moving parts
• No motors to clog or wear out
• Self priming stainless steel pump
• Safe - no electricity
• Built-in pressure/vacuum relief
• Drum is included
• Spill free - auto safety shutoff
• Quiet

What's Included

• High Lift Reversible Drum Vac two-way pump assembly (1/4 NPT)
• Directional flow valve
• 55 gallon drum
• Lever lock drum lid
• Safety shutoff valve
• 20' (6.1m) of flexible vacuum hose at 1-1/2" (38mm) I.D.
• 20' (6.1m) of compressed air hose
• Chip wand
• Two filter bags
• Drum dolly

High Lift Chip Trapper complies with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
