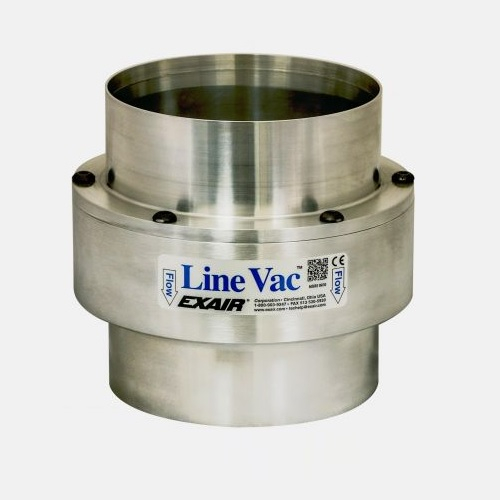

Exair 6088 5" Type 303 Stainless Steel Line Vac

5" 303 Stainless Steel Line Vac

Compressed air operated Line Vac connects to standard hose to create a powerful in-line conveyor material handling system. Unlike belt or screw type conveyor equipment, Line Vac conveyors are ideal for moving large volumes of material over long distances without clogging or jamming. The material flow rate is easily controlled with a pressure regulator. An optional bracket permits easy mounting. No moving parts or electricity assures maintenance free operation.

Applications

• Hopper loading
• Fiber tensioning
• Material conveying
• Waste/trim removal
• Chip removal
• Part transfer
• Filling operations

Advantages

• Compact
• Quiet
• No moving parts
• Fits standard hose or tube
• Stainless steel
• High throughput capacity

Materials
Our standard stainless steel models (Type 303) offer good corrosion resistance and are ideal for food service, abrasive or corrosive applications. Maximum temperature: 800°F (426°C).
