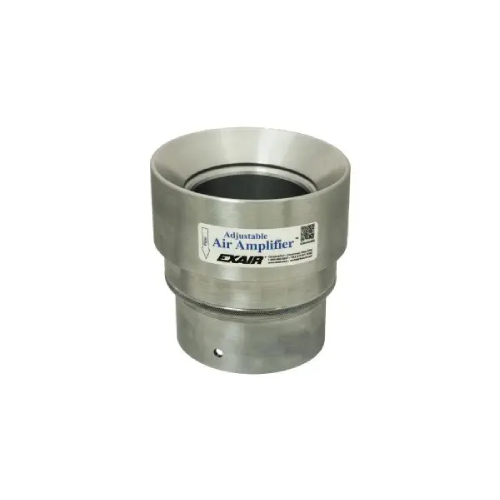

Exair 6033 3" Stainless Steel Adjustable Air Amplifier Only

Features:

• Force and flow for the Adjustable Air Amplifier is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap.
• When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting.
• Utilizing a basic principle of fluidics, the Coanda effect, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes, and light materials.
• 3" Stainless Steel Adjustable Air Amplifier

Applications:

• Vent welding smoke
• Cool hot parts
• Dry wet parts
• Clean machined parts
• Distribute heat in ovens/molds
• Ventilate confined areas
• Dust collection
• Exhaust tank fumes

Advantages:

• Compared to Fans:
  • Compact, lightweight, portable
  • No electricity
  • No moving parts - no maintenance
  • Ends are easily ducted
  • Instant on/off
  • Variable force and flow
  • No RF interference
• Compared to Venturies and Ejectors:
  • More air with lower compressed air consumption
  • Higher flow amplification
  • No internal obstructions
  • Meets OSHA pressure and noise requirements
  • Quiet

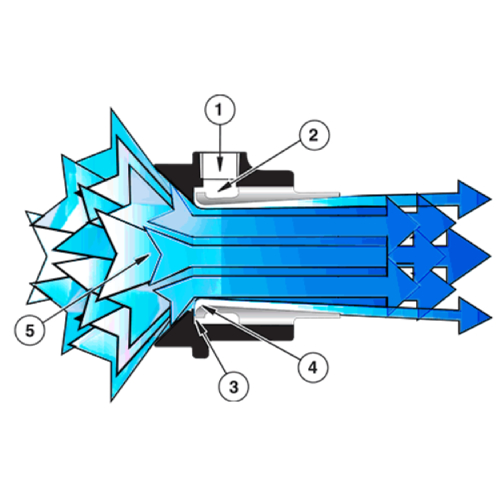

How it Work:

• Compressed air flows through the air inlet (1) into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity.
• This primary airstream adheres to the Coanda profile (4), which directs it toward the outlet.
• A low pressure area is created at the center (5), inducing a high volume flow of surrounding air into the primary airstream.
• The combined flow of primary and surrounding air exhausts from the Air Amplifier in a high volume, high velocity flow.
