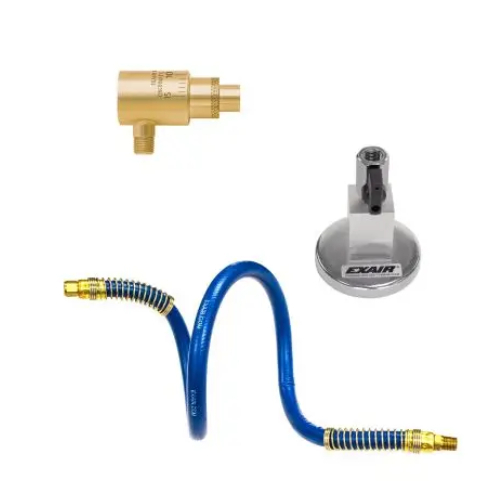

Exair 6019-9368 Adjustable Air Jet with 18", Stay Set Hose and Magnetic Base

Features:

• This is an adjustable version of the Model 6013/6013SS High Velocity Air Jet.
• Airflow and thrust are easily adjusted using the micrometer gap indicator.
• The Stay Set Hose provides precise positioning or repositioning necessary for different applications.
• A strong magnetic base provides a secure mount on ferrous metal surfaces, frames or brackets.
• Brass - general purpose applications. Maximum temperature 400°F (204°C).
• Adjustable Air Jet with 18" SSH & Mag Base

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements

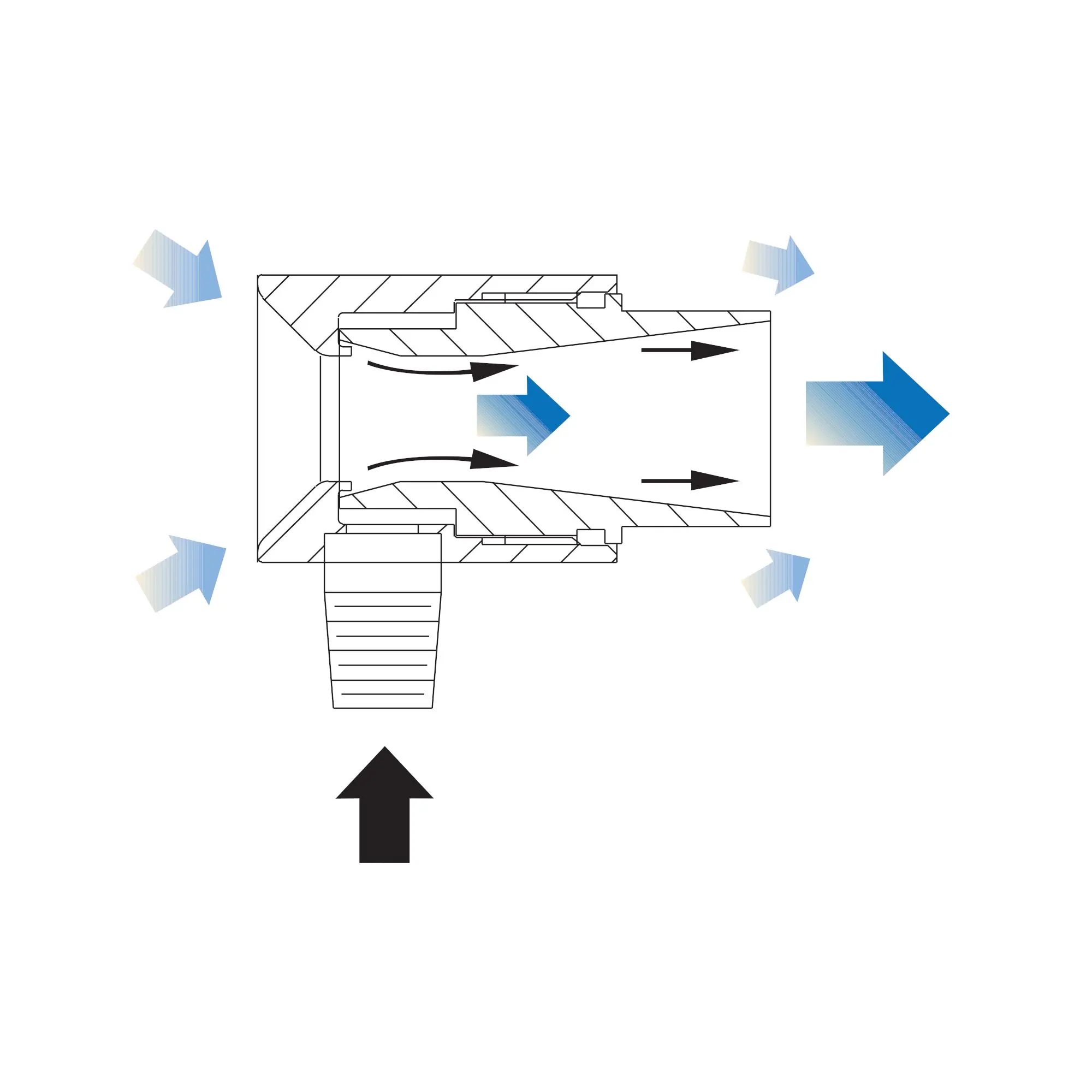

How it Work:

• Air Jets utilize the Coanda effect (wall attachment of a high velocity fluid) to produce air motion in their surroundings.
• As illustrated above, a small amount of compressed air (black arrows) is throttled through an internal ring nozzle above sonic velocity.
• A vacuum is produced, pulling large volumes of surrounding, or "free" air, through the jet (blue arrows).
• Both the outlet and inlet can be ducted for remote positioning. If the end is blocked, flow simply reverses at well below OSHA dead end pressure requirements.
